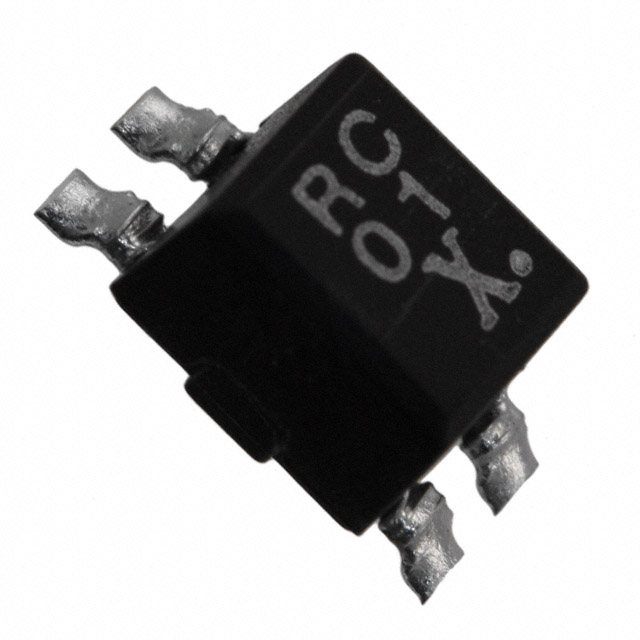

CM04RC01T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CM04RC01T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CM04RC01T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CM04RC01T |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | CMC 1.5A 2LN 800 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CM04RC01T | Manufacturer | Taiyo Yuden |
|---|---|---|---|
| Description | CMC 1.5A 2LN 800 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5490 pcs | Data sheet | Common Mode Choke Coils SMDCM04RC01T Spec Sheet |
| Category | Filters | Voltage Rating - DC | 50V |
| Voltage Rating - AC | - | Size / Dimension | 0.205" L x 0.354" W (5.20mm x 9.00mm) |
| Series | CM04 | Ratings | - |
| Packaging | Original-Reel® | Package / Case | Horizontal, 4 Gull Wing |
| Other Names | 587-2702-6 | Operating Temperature | -25°C ~ 105°C |
| Number of Lines | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Impedance @ Frequency | 800 Ohms @ 100MHz | Height (Max) | 0.185" (4.70mm) |
| Filter Type | Power, Signal Line | Features | - |
| Detailed Description | 2 Line Common Mode Choke Surface Mount 800 Ohms @ 100MHz 1.5A DCR 60 mOhm | DC Resistance (DCR) (Max) | 60 mOhm |
| Current Rating (Max) | 1.5A | Approvals | - |
