CM04RC02T

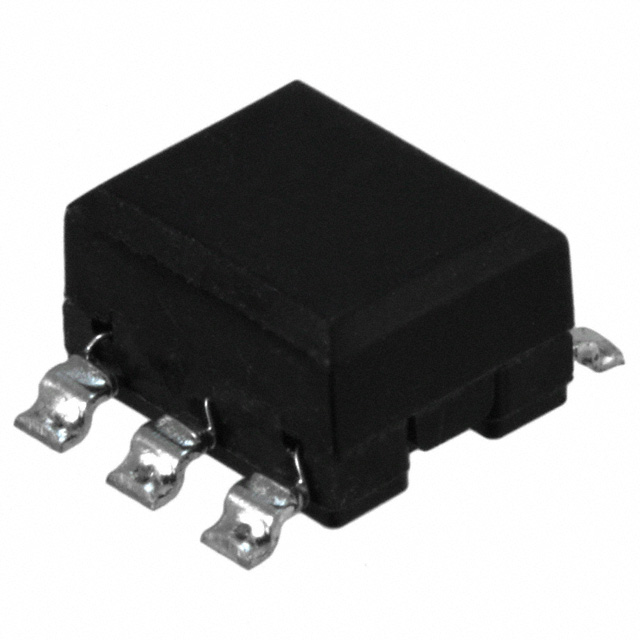

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CM04RC02T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CM04RC02T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CM04RC02T |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | CMC 500MA 3LN 1 KOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CM04RC02T | Manufacturer | Taiyo Yuden |
|---|---|---|---|
| Description | CMC 500MA 3LN 1 KOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4003 pcs | Data sheet | Common Mode Choke Coils SMDCM04RC02T Spec Sheet |
| Category | Filters | Voltage Rating - DC | 50V |
| Voltage Rating - AC | - | Size / Dimension | 0.291" L x 0.354" W (7.40mm x 9.00mm) |
| Series | CM04 | Ratings | - |
| Packaging | Cut Tape (CT) | Package / Case | 6-SMD, Gull Wing |
| Other Names | 587-2703-1 | Operating Temperature | -25°C ~ 105°C |
| Number of Lines | 3 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Impedance @ Frequency | 1 kOhms @ 100MHz | Height (Max) | 0.181" (4.60mm) |
| Filter Type | Power, Signal Line | Features | - |
| Detailed Description | 3 Line Common Mode Choke Surface Mount 1 kOhms @ 100MHz 500mA DCR 180 mOhm | DC Resistance (DCR) (Max) | 180 mOhm |
| Current Rating (Max) | 500mA | Approvals | - |
