PC44PQ40/40Z-12

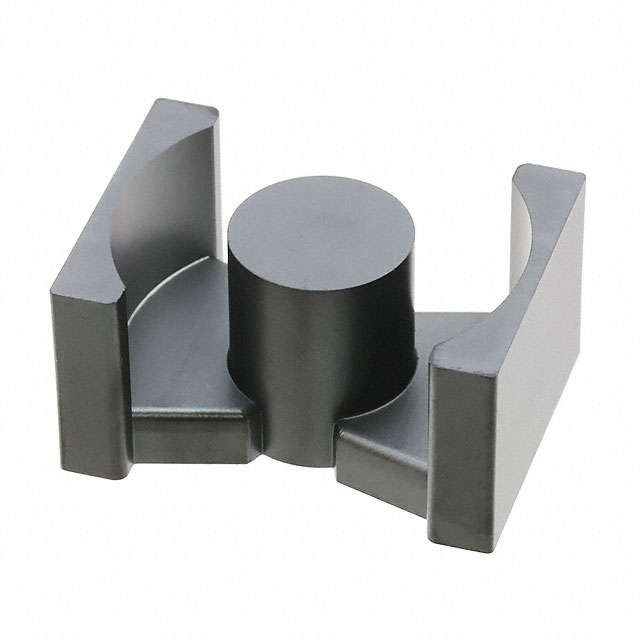

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PC44PQ40/40Z-12 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PC44PQ40/40Z-12 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PC44PQ40/40Z-12 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | FERRITE CORE FOR SWITCHING POWER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2 pcs | 10 pcs | 56 pcs | 112 pcs | |
|---|---|---|---|---|---|
| $1.04 | $0.897 | $0.646 | $0.574 | ||
| 280 pcs | 504 pcs | 1008 pcs | |||
| $0.538 | $0.502 | $0.461 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PC44PQ40/40Z-12 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | FERRITE CORE FOR SWITCHING POWER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79547 pcs | Data sheet | PC44PQ40/40Z-12 Spec |
| Category | Magnetics - Transformer, Inductor Components | Width | 28.00mm |
| Tolerance | ±25% | Supplier Device Package | PQ 40 x 40 |
| Series | - | Other Names | 445-175086 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material | PC44 |
| Manufacturer Standard Lead Time | 12 Weeks | Length | 40.50mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | 39.75mm |
| Gap | Ungapped | Finish | Uncoated |
| Effective Magnetic Volume (Ve) mm³ | 20500 | Effective Length (le) mm | 102 |
| Effective Area (Ae) mm² | 201 | Diameter | - |
| Core Type | PQ | Core Factor (ΣI/A) mm1 | 0.508 |
