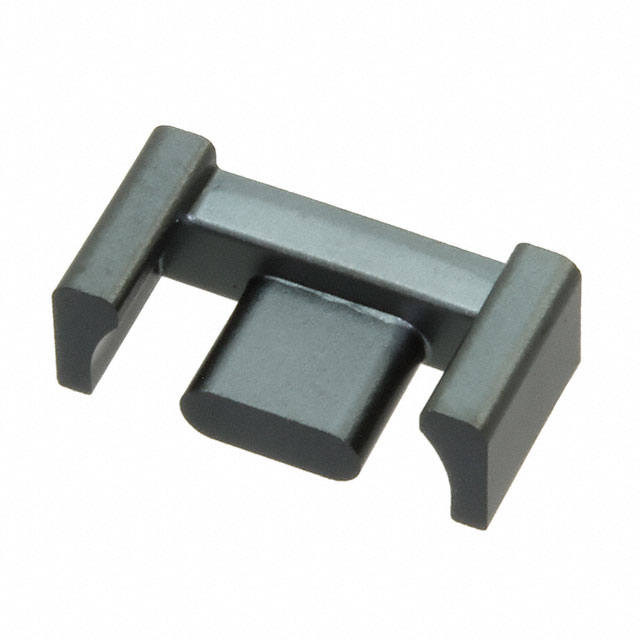

PC44EPC13-Z
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PC44EPC13-Z with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PC44EPC13-Z with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PC44EPC13-Z |
|---|---|
| Manufacturer | TDK Corporation |
| Description | FERRITE CORE FOR SWITCHING POWER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.318 | $0.285 | $0.201 | $0.18 | ||
| 250 pcs | 900 pcs | 1800 pcs | |||
| $0.169 | $0.159 | $0.137 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PC44EPC13-Z | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | FERRITE CORE FOR SWITCHING POWER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 164166 pcs | Data sheet | PC44EPC13-Z Spec |
| Category | Magnetics - Transformer, Inductor Components | Width | 4.60mm |
| Tolerance | ±25% | Supplier Device Package | EPC 13 |
| Series | - | Other Names | 445-175084 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material | PC44 |
| Manufacturer Standard Lead Time | 12 Weeks | Length | 13.25mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | 6.60mm |
| Gap | Ungapped | Finish | Uncoated |
| Effective Magnetic Volume (Ve) mm³ | 382 | Effective Length (le) mm | 30.6 |
| Effective Area (Ae) mm² | 12.5 | Diameter | - |
| Core Type | EPC | Core Factor (ΣI/A) mm1 | 2.45 |
