PC451J00000F

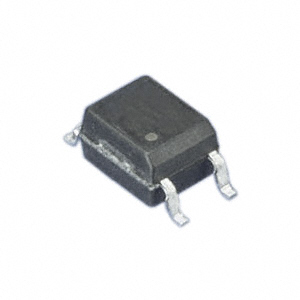

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PC451J00000F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PC451J00000F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PC451J00000F |
|---|---|
| Manufacturer | Sharp Microelectronics |
| Description | OPTOISOLATOR 3.75KV TRANS 4SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.649 | $0.575 | $0.426 | $0.371 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.334 | $0.297 | $0.255 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PC451J00000F | Manufacturer | Sharp Microelectronics |
|---|---|---|---|
| Description | OPTOISOLATOR 3.75KV TRANS 4SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78699 pcs | Data sheet | PC451J00000F Series |
| Category | Isolators | Voltage - Output (Max) | 350V |
| Voltage - Isolation | 3750Vrms | Voltage - Forward (Vf) (Typ) | 1.2V |
| Vce Saturation (Max) | 300mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 4-Mini-Flat | Series | - |
| Rise / Fall Time (Typ) | 4µs, 5µs | Packaging | Cut Tape (CT) |
| Package / Case | 4-SMD | Output Type | Transistor |
| Other Names | 425-2144-1 | Operating Temperature | -25°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | DC | Detailed Description | Optoisolator Transistor Output 3750Vrms 1 Channel 4-Mini-Flat |
| Current Transfer Ratio (Min) | 40% @ 5mA | Current Transfer Ratio (Max) | - |
| Current - Output / Channel | 50mA | Current - DC Forward (If) (Max) | 50mA |
