Home > Products > Switches > Magnetic, Reed Switches > ORD228VL-2030

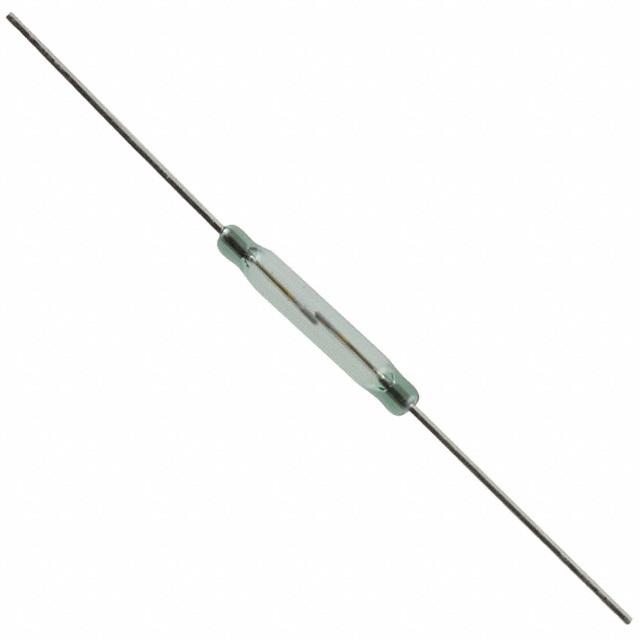

ORD228VL-2030

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ORD228VL-2030 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ORD228VL-2030
Manufacturer	Standex-Meder Electronics
Description	SWITCH REED SPST-NO 500MA 100V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 159974 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.271	$0.236	$0.227	$0.212	$0.208
	$0.165	$0.151	$0.146	$0.132

Product parameter
Data sheet

Product parameter

Part Number	ORD228VL-2030	Manufacturer	Standex-Meder Electronics
Description	SWITCH REED SPST-NO 500MA 100V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	159974 pcs	Data sheet	ORD228VL Datasheet ORD228VL Spec Sheet
Category	Switches	Voltage - Switching DC	100V
Voltage - Switching AC	100V	Type	Glass Body
Termination Style	Axial	Size - Body	0.087" Dia x 0.551" L (2.20mm x 14.00mm)
Series	ORD	Release Time	0.05ms
Release Range	-	Power - Rated	10W
Packaging	Bulk	Other Names	374-1274 4506602030 4536602030 ORD228VL-2030-ND ORD228VL2030
Operating Temperature	-	Operate Time	0.4ms
Operate Range	20 ~ 30AT	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	22 Weeks
Length - Overall	1.744" (44.30mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Above Board	-	Detailed Description	Glass Body Reed Switch SPST-NO 20 ~ 30AT Operate Range 10W 500mA (AC/DC) 100V Through Hole
Current - Switching	500mA (AC/DC)	Current - Carry	1A (AC/DC)
Circuit	SPST-NO	Capacitance	0.3pF
