Home > Products > Switches > Magnetic, Reed Switches > ORD228VL-1520

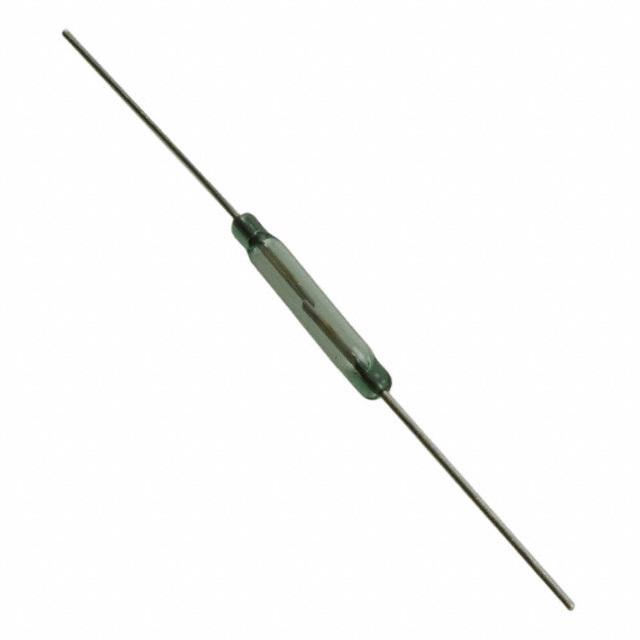

ORD228VL-1520

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ORD228VL-1520 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ORD228VL-1520
Manufacturer	Standex-Meder Electronics
Description	SWITCH REED SPST-NO 500MA 100V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 154040 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.278	$0.243	$0.233	$0.218	$0.214
	$0.17	$0.155	$0.15	$0.136

Product parameter
Data sheet

Product parameter

Part Number	ORD228VL-1520	Manufacturer	Standex-Meder Electronics
Description	SWITCH REED SPST-NO 500MA 100V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	154040 pcs	Data sheet	ORD228VL Datasheet ORD228VL Spec Sheet
Category	Switches	Voltage - Switching DC	100V
Voltage - Switching AC	100V	Type	Glass Body
Termination Style	Axial	Size - Body	0.087" Dia x 0.551" L (2.20mm x 14.00mm)
Series	ORD	Release Time	0.05ms
Release Range	-	Power - Rated	10W
Packaging	Bulk	Other Names	374-1089 4506601520 ORD228VL1520
Operating Temperature	-	Operate Time	0.4ms
Operate Range	15 ~ 20AT	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	22 Weeks
Length - Overall	1.744" (44.30mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Above Board	-	Detailed Description	Glass Body Reed Switch SPST-NO 15 ~ 20AT Operate Range 10W 500mA (AC/DC) 100V Through Hole
Current - Switching	500mA (AC/DC)	Current - Carry	1A (AC/DC)
Circuit	SPST-NO	Capacitance	0.3pF
