Home > Products > Switches > Magnetic, Reed Switches > ORD228VL-1015

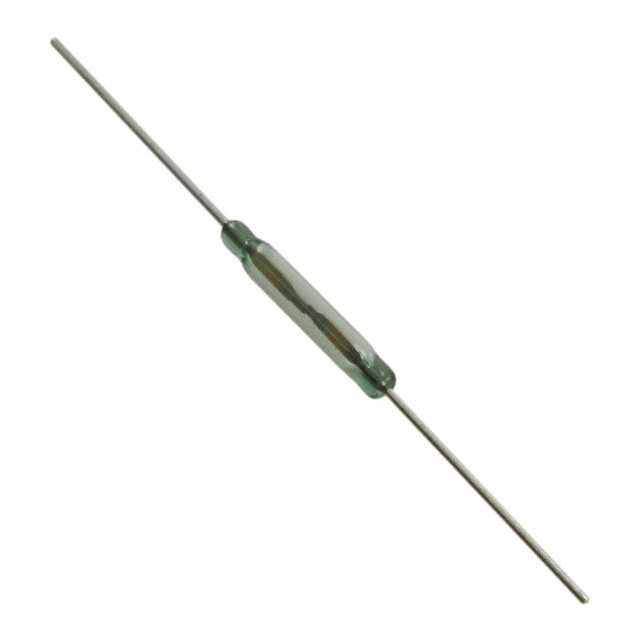

ORD228VL-1015

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ORD228VL-1015 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ORD228VL-1015
Manufacturer	Standex-Meder Electronics
Description	SWITCH REED SPST-NO 500MA 100V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 179004 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.267	$0.235	$0.226	$0.212	$0.207
	$0.165	$0.15	$0.146	$0.132

Product parameter
Data sheet

Product parameter

Part Number	ORD228VL-1015	Manufacturer	Standex-Meder Electronics
Description	SWITCH REED SPST-NO 500MA 100V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	179004 pcs	Data sheet	ORD228VL Datasheet ORD228VL Spec Sheet
Category	Switches	Voltage - Switching DC	100V
Voltage - Switching AC	100V	Type	Glass Body
Termination Style	Axial	Size - Body	0.087" Dia x 0.551" L (2.20mm x 14.00mm)
Series	ORD	Release Time	0.05ms
Release Range	-	Power - Rated	10W
Packaging	Bulk	Other Names	374-1088 4506601015 4506601314 4536601015 ORD228VL1015
Operating Temperature	-	Operate Time	0.4ms
Operate Range	10 ~ 15AT	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	22 Weeks
Length - Overall	1.744" (44.30mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Above Board	-	Detailed Description	Glass Body Reed Switch SPST-NO 10 ~ 15AT Operate Range 10W 500mA (AC/DC) 100V Through Hole
Current - Switching	500mA (AC/DC)	Current - Carry	1A (AC/DC)
Circuit	SPST-NO	Capacitance	0.3pF
