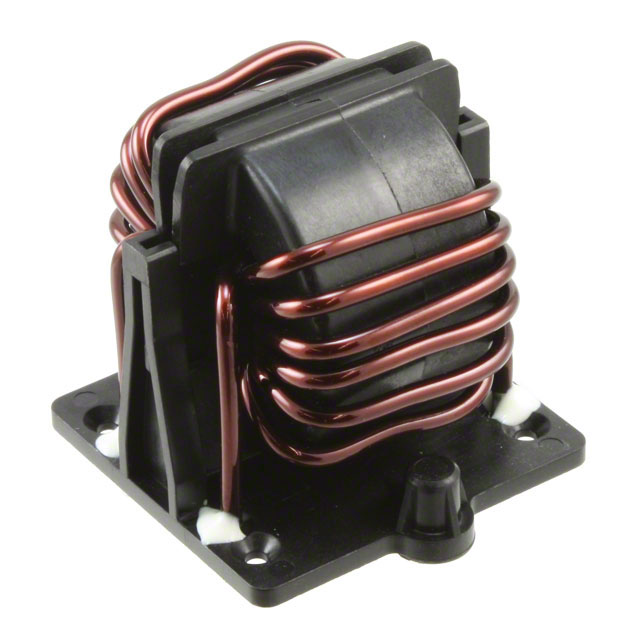

RB6522-25-0M6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RB6522-25-0M6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RB6522-25-0M6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RB6522-25-0M6 |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | CMC 640UH 25A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $4.064 | $3.843 | $3.245 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | RB6522-25-0M6 | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | CMC 640UH 25A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10751 pcs | Data sheet | RB Series |
| Category | Filters | Voltage Rating - DC | 1000V (1kV) |
| Voltage Rating - AC | 600V | Size / Dimension | 1.846" L x 1.772" W (46.90mm x 45.00mm) |
| Series | RB | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | 811873 817-1672 RB6522250M6 |
Operating Temperature | -40°C ~ 125°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 640µH @ 400Hz |
| Height (Max) | 2.047" (52.00mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 640µH @ 400Hz 2 Line Common Mode Choke Through Hole 25A DCR 2.6 mOhm (Typ) |
| DC Resistance (DCR) (Max) | 2.6 mOhm (Typ) | Current Rating (Max) | 25A |
| Approvals | - |
