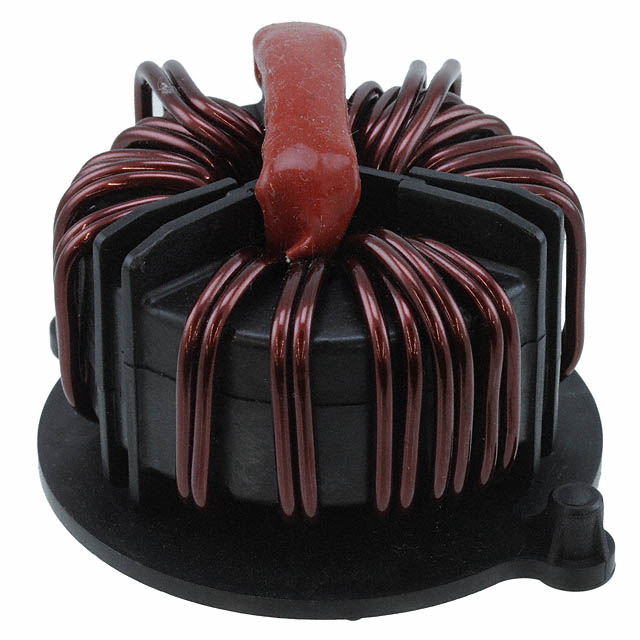

RB6132-36-0M4
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RB6132-36-0M4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RB6132-36-0M4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RB6132-36-0M4 |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | CMC 420UH 36A 3LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $5.392 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | RB6132-36-0M4 | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | CMC 420UH 36A 3LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6620 pcs | Data sheet | RB Series |
| Category | Filters | Voltage Rating - DC | 1000V (1kV) |
| Voltage Rating - AC | 600V | Size / Dimension | 2.673" L x 2.634" W (67.90mm x 66.90mm) |
| Series | RB | Ratings | - |
| Packaging | Bulk | Package / Case | Horizontal, 4 PC Pin |
| Other Names | 811892 817-1667 RB6132360M4 |
Operating Temperature | -40°C ~ 125°C |
| Number of Lines | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 420µH @ 400Hz |
| Height (Max) | 2.047" (52.00mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 420µH @ 400Hz 3 Line Common Mode Choke Through Hole 36A DCR 1.4 mOhm (Typ) |
| DC Resistance (DCR) (Max) | 1.4 mOhm (Typ) | Current Rating (Max) | 36A |
| Approvals | - |
