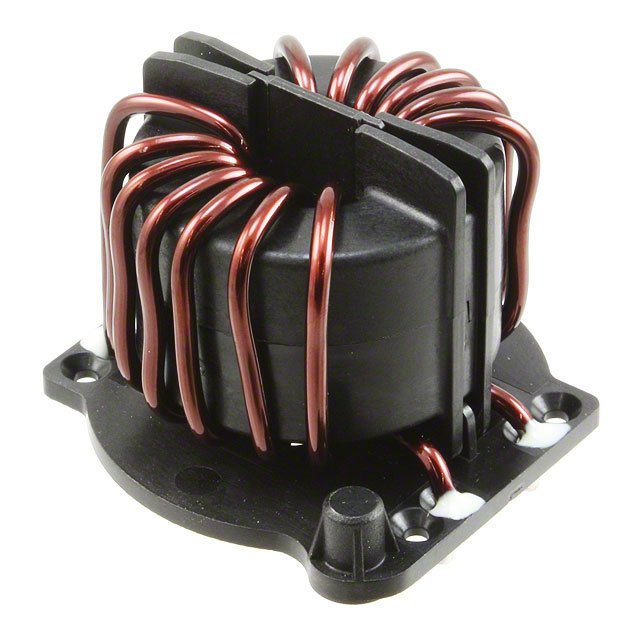

RB6122-16-1M0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RB6122-16-1M0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RB6122-16-1M0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RB6122-16-1M0 |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | COMMON MODE CHOKE 1MH 16A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $3.353 | $3.102 | $2.515 | $2.478 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | RB6122-16-1M0 | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | COMMON MODE CHOKE 1MH 16A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12104 pcs | Data sheet | RB Series |
| Category | Filters | Voltage Rating - DC | 1000V (1kV) |
| Voltage Rating - AC | 600V | Size / Dimension | 2.098" L x 2.020" W (53.29mm x 51.31mm) |
| Series | RB | Ratings | - |
| Packaging | Bulk | Package / Case | Horizontal, 4 PC Pin |
| Other Names | 811866 817-1678 RB6122161M0 |
Operating Temperature | -40°C ~ 125°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 1mH @ 400Hz |
| Height (Max) | 1.634" (41.50mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 1mH @ 400Hz 2 Line Common Mode Choke Through Hole 16A DCR 4.8 mOhm (Typ) |
| DC Resistance (DCR) (Max) | 4.8 mOhm (Typ) | Current Rating (Max) | 16A |
| Approvals | - |
