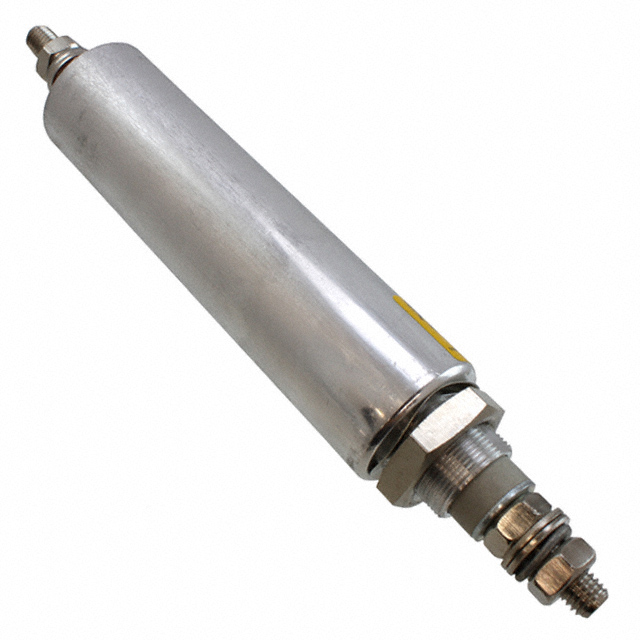

FN7661-100-M8
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FN7661-100-M8 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FN7661-100-M8 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FN7661-100-M8 |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | FILTER LC(PI) 186NH/1UH BOLT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $50.21 | $47.613 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FN7661-100-M8 | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | FILTER LC(PI) 186NH/1UH BOLT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 757 pcs | Data sheet | FN766x Series Datasheet |
| Category | Filters | Voltage - Rated | 130V |
| Values | L = 186nH, C = 1µF | Type | Low Pass |
| Technology | LC (Pi) | Size / Dimension | 1.260" Dia x 5.354" L (32.00mm x 136.00mm |
| Series | FN 766X | Resistance - Channel (Ohms) | 0.00028 |
| Packaging | Tray | Package / Case | Axial - Threaded Terminals |
| Other Names | 297-711 801445 817-1762 FN7661-100-M8-ND FN7661100M8 |
Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Bolt Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | - |
| Filter Order | 3rd | ESD Protection | No |
| Detailed Description | LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 186nH, C = 1µF 100A Axial - Threaded Terminals | Current | 100A |
| Center / Cutoff Frequency | - | Attenuation Value | - |
| Applications | Data Lines for Mobile Devices |
