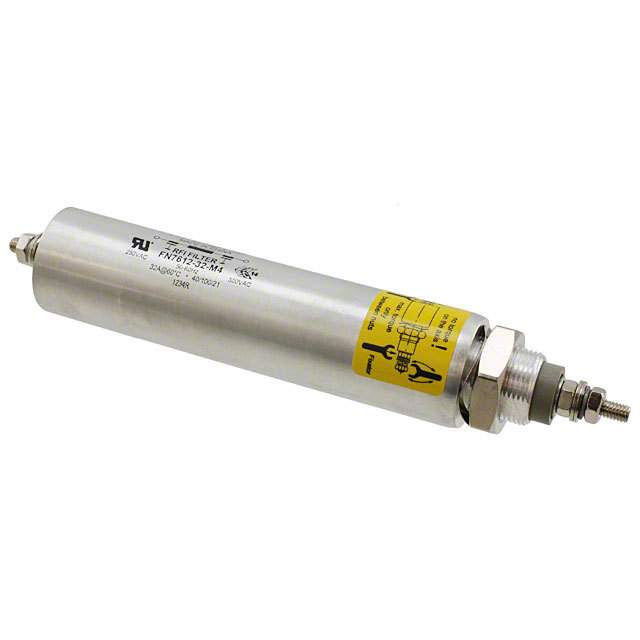

FN7612-32-M4
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FN7612-32-M4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FN7612-32-M4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FN7612-32-M4 |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | FILTER LC(PI) 70NH/0.1UF BOLT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $37.549 | $35.607 | $33.017 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | FN7612-32-M4 | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | FILTER LC(PI) 70NH/0.1UF BOLT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 943 pcs | Data sheet | FN761x Datasheet |
| Category | Filters | Voltage - Rated | 1000V (1kV) |
| Values | L = 70nH, C = 0.1µF | Type | Low Pass |
| Technology | LC (Pi) | Size / Dimension | 0.984" Dia x 4.528" L (25.00mm x 115.00mm) |
| Series | FN 761X | Resistance - Channel (Ohms) | 0.00092 |
| Packaging | Tray | Package / Case | Axial - Threaded Terminals |
| Other Names | 297-989 801832 817-1754 FN7612-32-M4-ND FN761232M4 |
Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Bolt Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | - |
| Filter Order | 3rd | ESD Protection | No |
| Detailed Description | LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 70nH, C = 0.1µF 32A Axial - Threaded Terminals | Current | 32A |
| Center / Cutoff Frequency | - | Attenuation Value | - |
| Applications | Data Lines for Mobile Devices |
