FN7612-10-M3

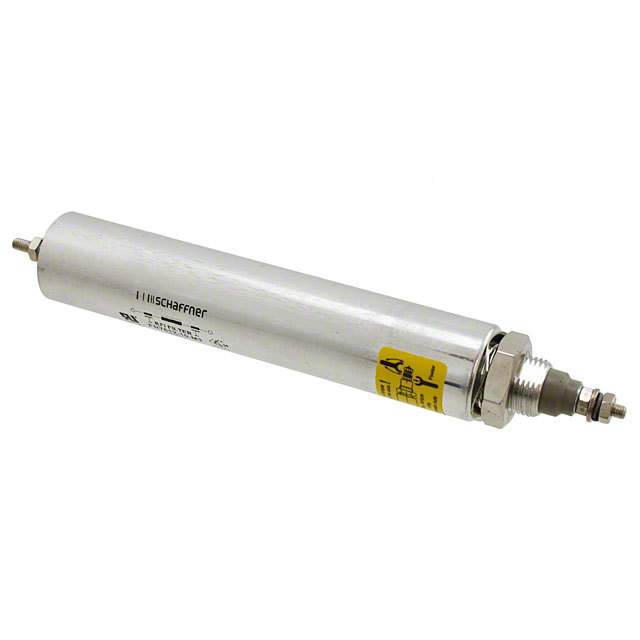

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FN7612-10-M3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FN7612-10-M3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FN7612-10-M3 |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | FILTER LC(PI) 70NH/0.047UH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $32.222 | $30.556 | $28.334 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | FN7612-10-M3 | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | FILTER LC(PI) 70NH/0.047UH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1343 pcs | Data sheet | FN761x Datasheet |
| Category | Filters | Voltage - Rated | 1000V (1kV) |
| Values | L = 70nH, C = 0.047µF | Type | Low Pass |
| Technology | LC (Pi) | Size / Dimension | 0.787" Dia x 4.370" L (20.00mm x 111.00mm) |
| Series | FN 761X | Resistance - Channel (Ohms) | 0.00152 |
| Packaging | Tray | Package / Case | Axial - Threaded Terminals |
| Other Names | 297-919 801808 817-1752 FN7612-10-M3-ND FN761210M3 |
Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | - |
| Filter Order | 3rd | ESD Protection | No |
| Detailed Description | LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 70nH, C = 0.047µF 10A Axial - Threaded Terminals | Current | 10A |
| Center / Cutoff Frequency | - | Attenuation Value | - |
| Applications | Data Lines for Mobile Devices |
