EH35-5.0-02-3M6

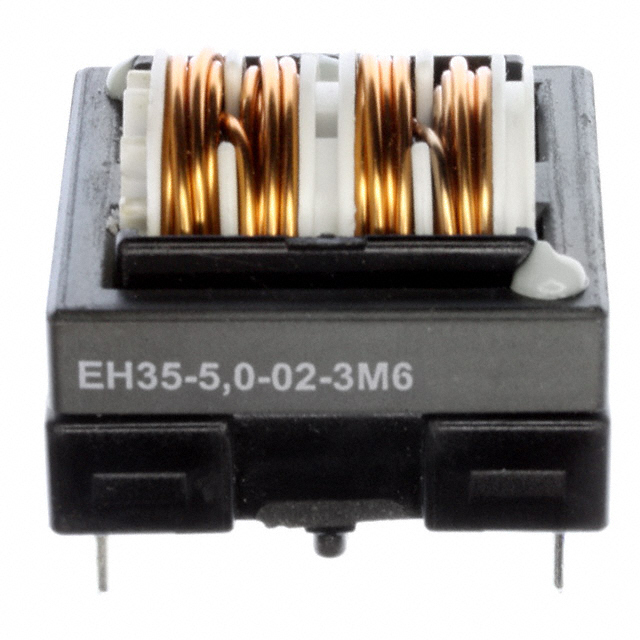

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EH35-5.0-02-3M6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EH35-5.0-02-3M6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EH35-5.0-02-3M6 |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | CMC 3.6MH 5A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 250 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.175 | $1.977 | $1.265 | $1.226 | $1.168 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | EH35-5.0-02-3M6 | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | CMC 3.6MH 5A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30784 pcs | Data sheet | EV,EH Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 1.417" L x 1.417" W (36.00mm x 36.00mm) |
| Series | EH | Ratings | - |
| Packaging | Tube | Package / Case | Horizontal, 4 PC Pin |
| Other Names | 295-543 801096 817-1029 EH35-5,0-02-3M6 EH3550023M6 |
Operating Temperature | -25°C ~ 100°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 3.6mH @ 400Hz | Height (Max) | 1.130" (28.70mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 3.6mH @ 400Hz 2 Line Common Mode Choke Through Hole 5A DCR 33 mOhm (Typ) | DC Resistance (DCR) (Max) | 33 mOhm (Typ) |
| Current Rating (Max) | 5A | Approvals | - |
