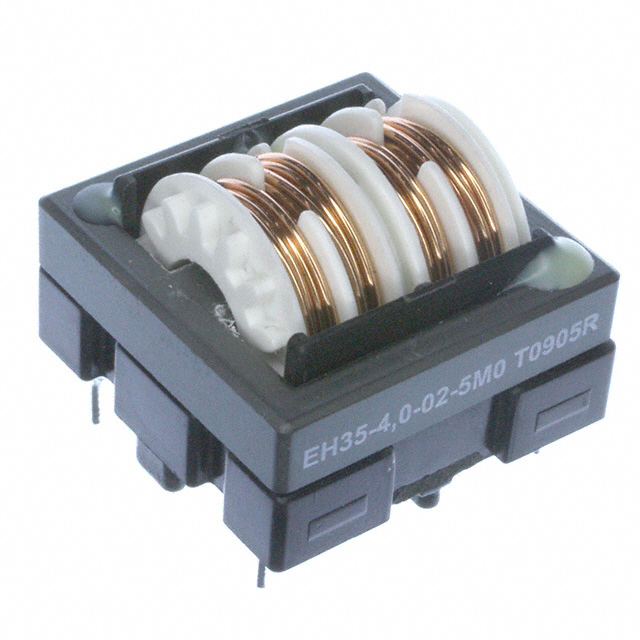

EH35-4.0-02-5M0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EH35-4.0-02-5M0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EH35-4.0-02-5M0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EH35-4.0-02-5M0 |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | COMMON MODE CHOKE 5MH 4A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 250 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.222 | $2.02 | $1.293 | $1.252 | $1.194 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | EH35-4.0-02-5M0 | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | COMMON MODE CHOKE 5MH 4A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31286 pcs | Data sheet | EV,EH Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 1.417" L x 1.417" W (36.00mm x 36.00mm) |
| Series | EH | Ratings | - |
| Packaging | Tube | Package / Case | Horizontal, 4 PC Pin |
| Other Names | 295-542 801095 817-1028 EH35-4,0-02-5M0 EH3540025M0 |
Operating Temperature | -25°C ~ 100°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 5mH @ 400Hz | Height (Max) | 1.130" (28.70mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 5mH @ 400Hz 2 Line Common Mode Choke Through Hole 4A DCR 53 mOhm (Typ) | DC Resistance (DCR) (Max) | 53 mOhm (Typ) |
| Current Rating (Max) | 4A | Approvals | - |
