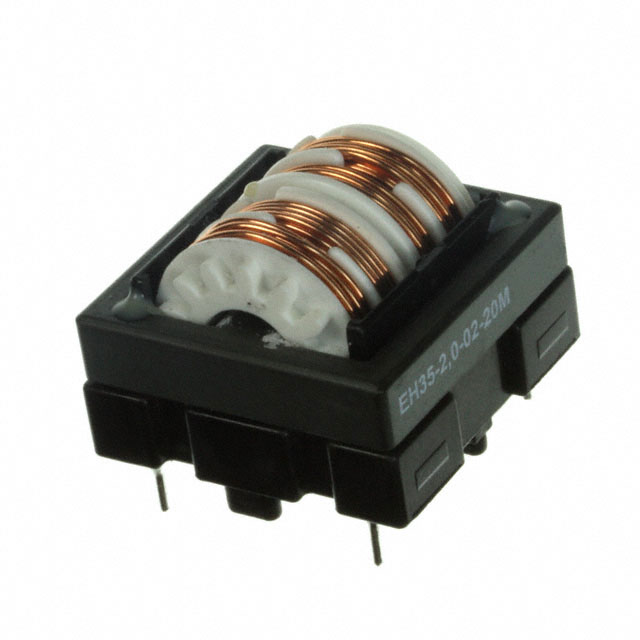

EH35-2.0-02-20M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EH35-2.0-02-20M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EH35-2.0-02-20M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EH35-2.0-02-20M |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | COMMON MODE CHOKE 20MH 2A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 250 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.219 | $2.017 | $1.291 | $1.25 | $1.192 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | EH35-2.0-02-20M | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | COMMON MODE CHOKE 20MH 2A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26734 pcs | Data sheet | EV,EH Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 1.417" L x 1.417" W (36.00mm x 36.00mm) |
| Series | EH | Ratings | - |
| Packaging | Tube | Package / Case | Horizontal, 4 PC Pin |
| Other Names | 295-540 801093 817-1026 EH35-2,0-02-20M EH35200220M |
Operating Temperature | -25°C ~ 100°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 20mH @ 10kHz | Height (Max) | 1.130" (28.70mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 20mH @ 10kHz 2 Line Common Mode Choke Through Hole 2A DCR 150 mOhm (Typ) | DC Resistance (DCR) (Max) | 150 mOhm (Typ) |
| Current Rating (Max) | 2A | Approvals | - |
