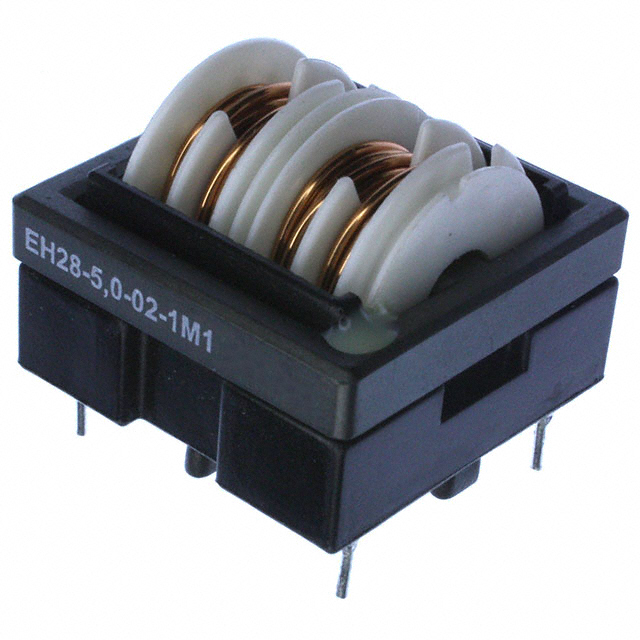

EH28-5.0-02-1M1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EH28-5.0-02-1M1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EH28-5.0-02-1M1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EH28-5.0-02-1M1 |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | CMC 1.1MH 5A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.081 | $0.99 | $0.648 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.576 | $0.54 | $0.532 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EH28-5.0-02-1M1 | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | CMC 1.1MH 5A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58291 pcs | Data sheet | EV,EH Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 1.102" L x 1.102" W (28.00mm x 28.00mm) |
| Series | EH | Ratings | - |
| Packaging | Tube | Package / Case | Horizontal, 4 PC Pin |
| Other Names | 295-538 801091 817-1024 EH28-5,0-02-1M1 EH2850021M1 |
Operating Temperature | -25°C ~ 100°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 1.1mH @ 400Hz | Height (Max) | 0.941" (23.90mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 1.1mH @ 400Hz 2 Line Common Mode Choke Through Hole 5A DCR 27 mOhm (Typ) | DC Resistance (DCR) (Max) | 27 mOhm (Typ) |
| Current Rating (Max) | 5A | Approvals | - |
