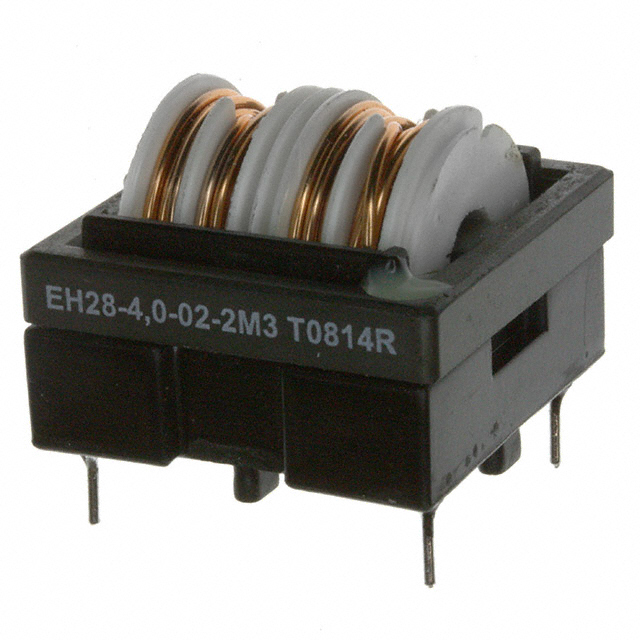

EH28-4.0-02-2M3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EH28-4.0-02-2M3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EH28-4.0-02-2M3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EH28-4.0-02-2M3 |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | CMC 2.3MH 4A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.064 | $0.974 | $0.637 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.567 | $0.531 | $0.523 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EH28-4.0-02-2M3 | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | CMC 2.3MH 4A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71263 pcs | Data sheet | EV,EH Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 1.102" L x 1.102" W (28.00mm x 28.00mm) |
| Series | EH | Ratings | - |
| Packaging | Tube | Package / Case | Horizontal, 4 PC Pin |
| Other Names | 295-537 801090 817-1022 EH28-4,0-02-2M3 EH2840022M3 |
Operating Temperature | -25°C ~ 100°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 2.3mH @ 10kHz | Height (Max) | 0.941" (23.90mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 2.3mH @ 10kHz 2 Line Common Mode Choke Through Hole 4A DCR 40 mOhm (Typ) | DC Resistance (DCR) (Max) | 40 mOhm (Typ) |
| Current Rating (Max) | 4A | Approvals | - |
