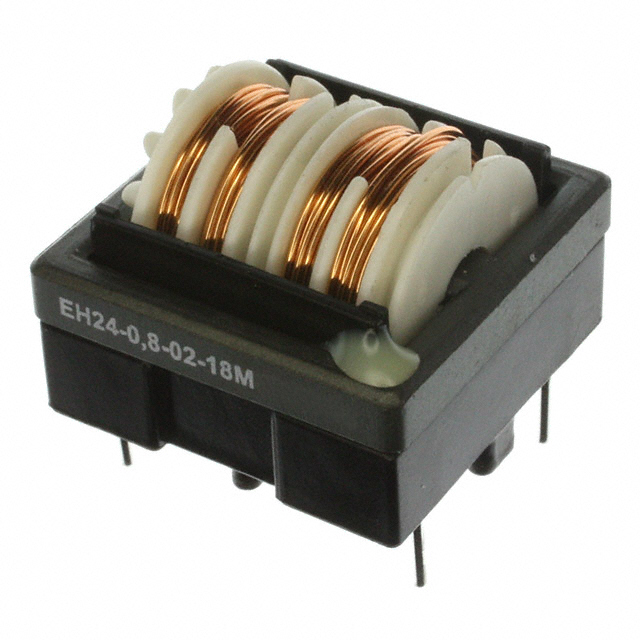

EH24-0.8-02-18M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EH24-0.8-02-18M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EH24-0.8-02-18M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EH24-0.8-02-18M |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | CMC 18MH 800MA 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.841 | $0.776 | $0.543 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.44 | $0.401 | $0.388 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EH24-0.8-02-18M | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | CMC 18MH 800MA 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 97041 pcs | Data sheet | EV,EH Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 0.945" L x 0.945" W (24.00mm x 24.00mm) |
| Series | EH | Ratings | - |
| Packaging | Tube | Package / Case | Horizontal, 4 PC Pin |
| Other Names | 295-527 801080 817-1008 EH24-0,8-02-18M EH24080218M |
Operating Temperature | -25°C ~ 100°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 18mH @ 400Hz | Height (Max) | 0.827" (21.00mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 18mH @ 400Hz 2 Line Common Mode Choke Through Hole 800mA DCR 438 mOhm (Typ) | DC Resistance (DCR) (Max) | 438 mOhm (Typ) |
| Current Rating (Max) | 800mA | Approvals | - |
