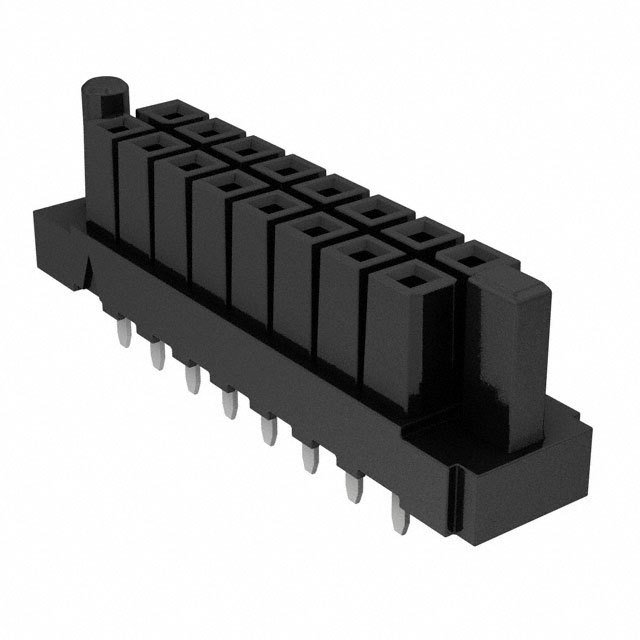

IPBS-108-01-T-D-GP
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPBS-108-01-T-D-GP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPBS-108-01-T-D-GP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IPBS-108-01-T-D-GP |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .165 DOUBLE ROW SOCKET ASSEMBLY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $1.406 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IPBS-108-01-T-D-GP | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .165 DOUBLE ROW SOCKET ASSEMBLY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25327 pcs | Data sheet | IPBS-1yy-yy-yy-D-yy DrawingIPBS Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 400VAC, 565VDC |
| Termination | Solder | Style | Board to Board |
| Series | Power Mate® IPBS | Row Spacing - Mating | 0.165" (4.20mm) |
| Pitch - Mating | 0.165" (4.20mm) | Packaging | Tube |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 16 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.480" (12.20mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Guide Pin | Fastening Type | Push-Pull |
| Detailed Description | 16 Position Header Connector Through Hole | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.155" (3.94mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
