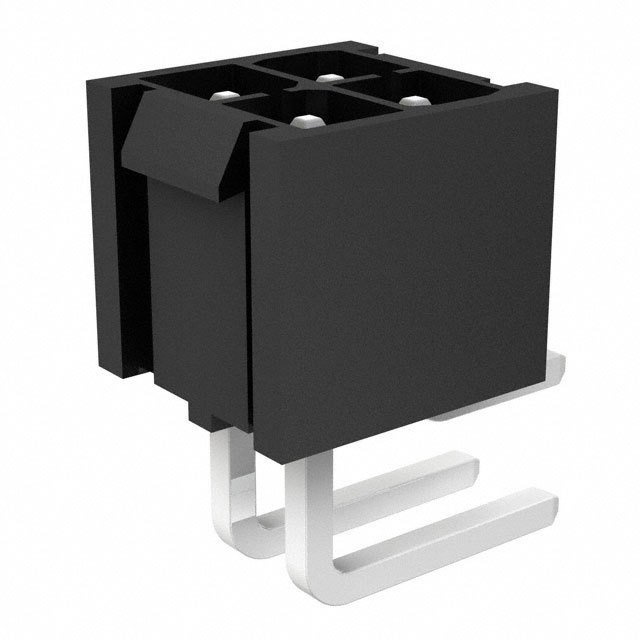

IPBT-102-H1-T-D-RA-K
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPBT-102-H1-T-D-RA-K with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPBT-102-H1-T-D-RA-K with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IPBT-102-H1-T-D-RA-K |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .165 DOUBLE ROW TERMINAL ASSEMBL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.666 | $0.606 | $0.519 | $0.433 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.371 | $0.329 | $0.322 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | IPBT-102-H1-T-D-RA-K | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .165 DOUBLE ROW TERMINAL ASSEMBL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75106 pcs | Data sheet | IPBT Series DatasheetIPBT-1yy-yy-yy-D-yy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 400VAC, 565VDC |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Power Mate® IPBT |
| Row Spacing - Mating | 0.165" (4.20mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | IPBT-102-H1-T-D-RA-K-ND SAM9088 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole, Right Angle |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.424" (10.77mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole, Right Angle 4 position 0.165" (4.20mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.147" (3.73mm) |
| Contact Length - Mating | 0.260" (6.60mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
