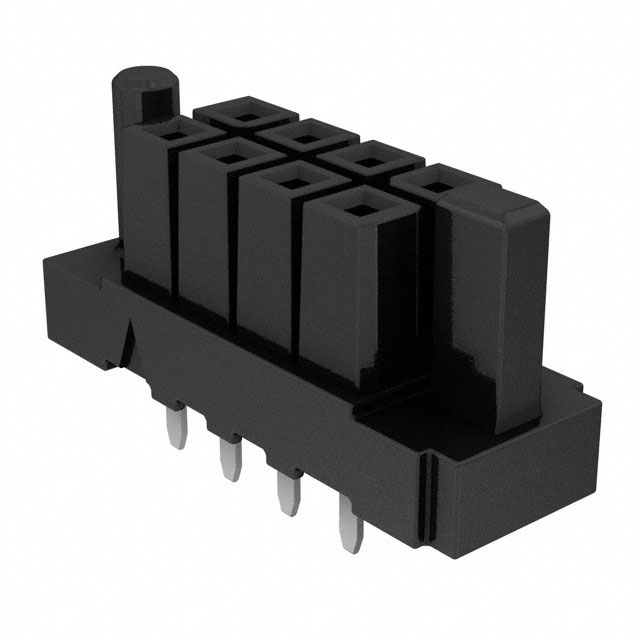

IPBS-104-01-T-D-GP
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPBS-104-01-T-D-GP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPBS-104-01-T-D-GP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IPBS-104-01-T-D-GP |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .165 DOUBLE ROW SOCKET ASSEMBLY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.95 | $0.861 | $0.738 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.615 | $0.527 | $0.468 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | IPBS-104-01-T-D-GP | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .165 DOUBLE ROW SOCKET ASSEMBLY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67526 pcs | Data sheet | IPBS-1yy-yy-yy-D-yy DrawingIPBS Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 400VAC, 565VDC |
| Termination | Solder | Style | Board to Board |
| Series | Power Mate® IPBS | Row Spacing - Mating | 0.165" (4.20mm) |
| Pitch - Mating | 0.165" (4.20mm) | Packaging | Tube |
| Other Names | IPBS-104-01-T-D-GP-ND SAM11404 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.480" (12.20mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Guide Pin |
| Fastening Type | Push-Pull | Detailed Description | 8 Position Header Connector Through Hole |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.155" (3.94mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
