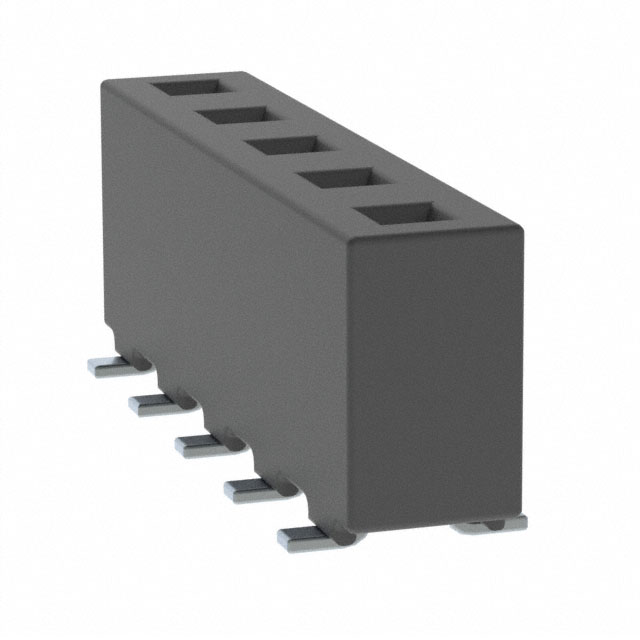

HPF-05-02-T-S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HPF-05-02-T-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HPF-05-02-T-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HPF-05-02-T-S |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .200 HI POWER SOCKET ASSEMBLY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.147 | $0.971 | $0.75 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.618 | $0.574 | $0.541 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HPF-05-02-T-S | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .200 HI POWER SOCKET ASSEMBLY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70792 pcs | Data sheet | HPF Series DatasheetHPF-yy-yy-yy-S-yy-yy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | HPF | Row Spacing - Mating | - |
| Pitch - Mating | 0.200" (5.08mm) | Packaging | Tube |
| Other Names | HPF-05-02-T-S-ND SAM12627 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.351" (8.92mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 5 Position Receptacle Connector Surface Mount | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Beryllium Copper | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Receptacle | Applications | - |
