HPF-04-01-T-S

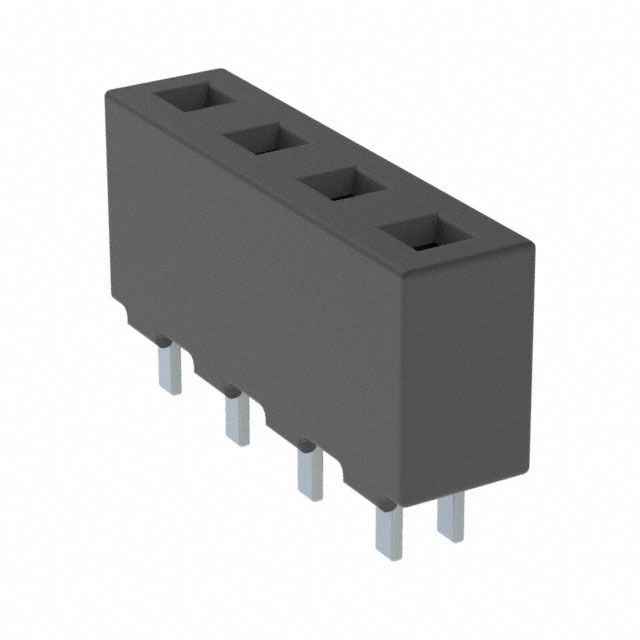

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HPF-04-01-T-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HPF-04-01-T-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HPF-04-01-T-S |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN SOCK STRIP 4POS .200" T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 28 pcs | 112 pcs | ||
|---|---|---|---|---|---|
| $0.966 | $0.749 | $0.599 | |||
| 504 pcs | 1008 pcs | 5012 pcs | |||
| $0.499 | $0.443 | $0.416 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HPF-04-01-T-S | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN SOCK STRIP 4POS .200" T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 82329 pcs | Data sheet | HPF Through Hole FootprintHPF Series DatasheetHPF-yy-yy-yy-S-yy-yy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | HPF | Row Spacing - Mating | - |
| Pitch - Mating | 0.200" (5.08mm) | Packaging | Tube |
| Other Names | HPF-04-01-T-S-ND SAM10523 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.351" (8.92mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 4 Position Receptacle Connector 0.200" (5.08mm) Through Hole Tin |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Beryllium Copper |
| Contact Length - Post | 0.102" (2.60mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | - |
