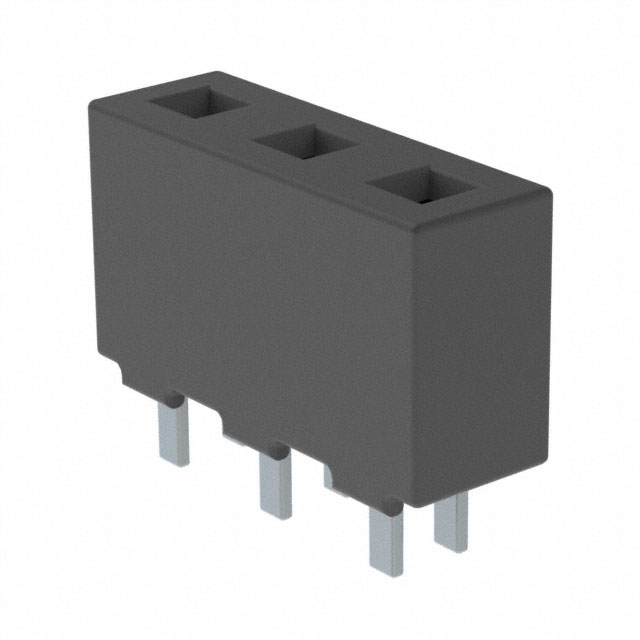

HPF-03-01-T-S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HPF-03-01-T-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HPF-03-01-T-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HPF-03-01-T-S |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN SOCK STRIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 37 pcs | 111 pcs | 518 pcs | |
|---|---|---|---|---|---|
| $0.801 | $0.622 | $0.498 | $0.415 | ||
| 1036 pcs | 5032 pcs | 10027 pcs | |||
| $0.368 | $0.346 | $0.339 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HPF-03-01-T-S | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN SOCK STRIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66240 pcs | Data sheet | HPF Series DatasheetHPF-yy-yy-yy-S-yy-yy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | HPF | Row Spacing - Mating | - |
| Pitch - Mating | 0.200" (5.08mm) | Packaging | Tube |
| Other Names | SAM9492 | Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.351" (8.92mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 3 Position Receptacle Connector Through Hole |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Beryllium Copper |
| Contact Length - Post | 0.102" (2.60mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | - |
