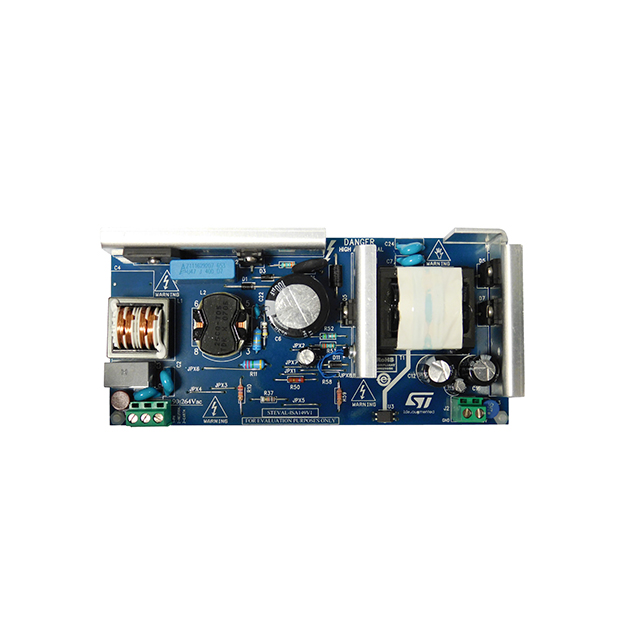

STEVAL-ISA149V1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STEVAL-ISA149V1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STEVAL-ISA149V1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STEVAL-ISA149V1 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | EVAL BOARD FOR L6563S L6566A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $51.917 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | STEVAL-ISA149V1 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | EVAL BOARD FOR L6563S L6566A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 584 pcs | Data sheet | L6563SL6566ASTEVAL-ISA149V1 Brief |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 19V |
| Voltage - Input | 90 ~ 264 VAC | Utilized IC / Part | L6563S, L6566A |
| Supplied Contents | Board(s) | Series | - |
| Regulator Topology | Flyback | Power - Output | 75W |
| Outputs and Type | 1, Isolated | Other Names | 497-16883 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Main Purpose | AC/DC, Primary Side and PFC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Switching | - |
| Detailed Description | L6563S, L6566A - AC/DC, Primary Side and PFC 1, Isolated Outputs Evaluation Board | Current - Output | 4A |
| Board Type | Fully Populated |
