Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > STEVAL-ISA145V1

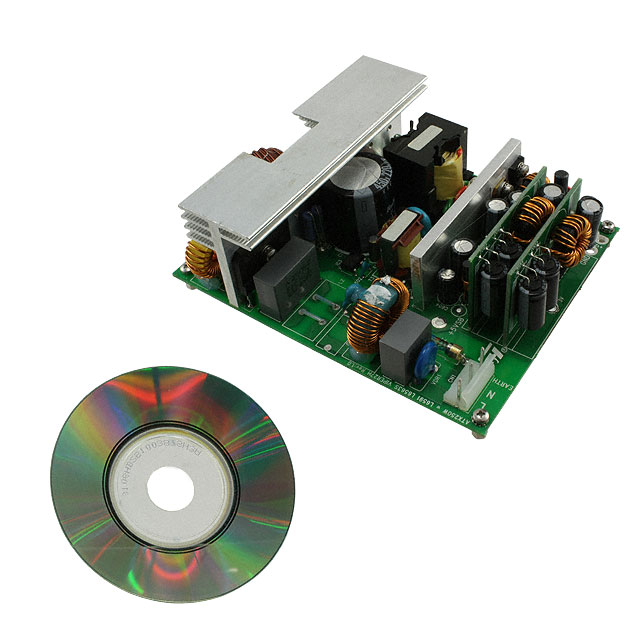

STEVAL-ISA145V1

STEVAL-ISA145V1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STEVAL-ISA145V1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	STEVAL-ISA145V1
Manufacturer	STMicroelectronics
Description	BOARD DEMO SMPS L6591/L6563S
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5994 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	STEVAL-ISA145V1	Manufacturer	STMicroelectronics
Description	BOARD DEMO SMPS L6591/L6563S	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5994 pcs	Data sheet	VIPER27 L6563S L6591 STEVAL-ISA145V1 Brief L6727 EVL250W-ATX80PL Appl Note
Category	Development Boards, Kits, Programmers	Voltage - Output	3.3V, 5V, 5V ,12V
Voltage - Input	88 ~ 264 VAC	Utilized IC / Part	L6563S, L6591, L6727, VIPer27H
Supplied Contents	Board(s)	Series	VIPer™ plus
Regulator Topology	Flyback	Power - Output	250W
Outputs and Type	4, Isolated	Other Names	497-10596 EVL250W-ATX80PL EVL250WATX80PL
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Main Purpose	Power Supply, ATX
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Switching	80kHz
Detailed Description	L6563S, L6591, L6727, VIPer27H VIPer™ plus Power Supply, ATX 4, Isolated Outputs Evaluation Board	Current - Output	13.5A, 12A, 8A, 2A
Board Type	Fully Populated
