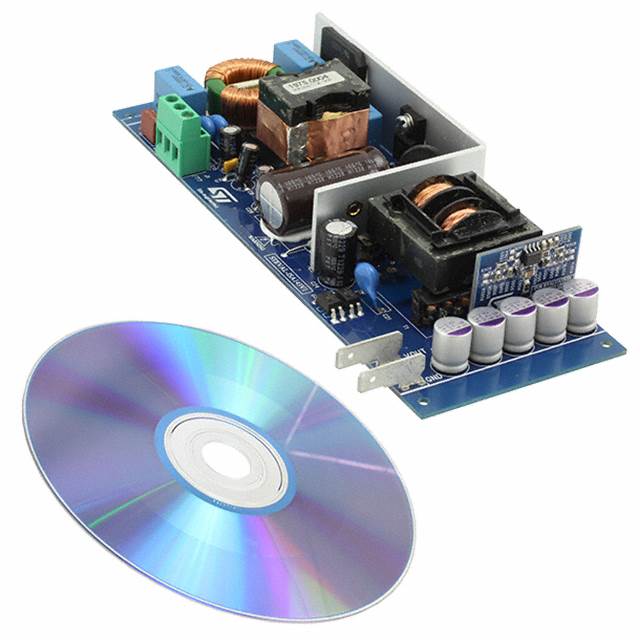

STEVAL-ISA143V1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STEVAL-ISA143V1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STEVAL-ISA143V1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STEVAL-ISA143V1 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | EVAL BOARD L6563H L6699 SRK2000 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | STEVAL-ISA143V1 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | EVAL BOARD L6563H L6699 SRK2000 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5767 pcs | Data sheet | STEVAL-ISA143V1 |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 12V |
| Voltage - Input | 90 ~ 264 VAC | Utilized IC / Part | L6563H, L6699, SRK2000 |
| Supplied Contents | Board(s) | Series | - |
| Regulator Topology | Resonant | Power - Output | 150W |
| Outputs and Type | 1, Isolated | Other Names | 497-14888 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Main Purpose | AC/DC, Primary Side |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Switching | - |
| Detailed Description | L6563H, L6699, SRK2000 - AC/DC, Primary Side 1, Isolated Outputs Evaluation Board | Current - Output | 12.5A |
| Board Type | Fully Populated |
