Home > Products > RF/IF and RFID > RF Antennas > W3126

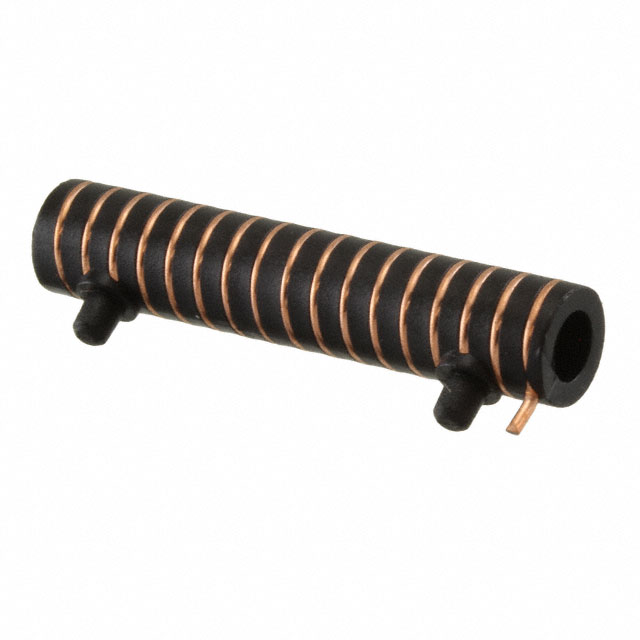

W3126

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy W3126 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	W3126
Manufacturer	Pulse Electronics Corporation
Description	RF ANT 315MHZ HELICAL SOLDER SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	500 pcs	1600 pcs	3200 pcs	6400 pcs
~~In Stock~~ 91811 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	100 pcs	250 pcs
	$0.606	$0.548	$0.49	$0.441	$0.392
	$0.343	$0.284	$0.264	$0.255

Product parameter
Data sheet

Product parameter

Part Number	W3126	Manufacturer	Pulse Electronics Corporation
Description	RF ANT 315MHZ HELICAL SOLDER SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	91811 pcs	Data sheet	Antennas SourceBook® Ver 13 W3126
Category	RF/IF and RFID	VSWR	-
Termination	Solder	Series	-
Return Loss	-10dB	Packaging	Tray
Other Names	553-2583 W3126-ND	Number of Bands	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Height (Max)	0.276" (7.00mm)
Gain	-5dBi	Frequency Range	-
Frequency Group	UHF (300 MHz ~ 1 GHz)	Frequency (Center/Band)	315MHz
Features	-	Detailed Description	315MHz Helical RF Antenna -5dBi Solder Surface Mount
Applications	-	Antenna Type	Helical
