Home > Products > RF/IF and RFID > RF Antennas > W3110

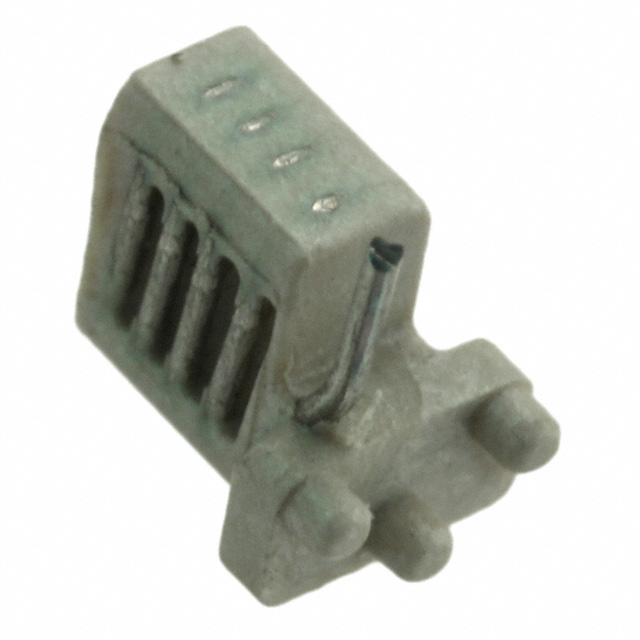

W3110

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy W3110 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	W3110
Manufacturer	Pulse Electronics Corporation
Description	RF ANT 1.575GHZ HELICAL SLDR SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 101493 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	100 pcs	250 pcs
Reference Price (In US Dollars)	$0.586	$0.529	$0.473	$0.425	$0.378

Product parameter
Data sheet

Product parameter

Part Number	W3110	Manufacturer	Pulse Electronics Corporation
Description	RF ANT 1.575GHZ HELICAL SLDR SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	101493 pcs	Data sheet	Antennas SourceBook® Ver 13 W3110
Category	RF/IF and RFID	VSWR	-
Termination	Solder	Series	-
Return Loss	-16dB	Packaging	Cut Tape (CT)
Other Names	553-1680-1	Number of Bands	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Height (Max)	0.217" (5.50mm)
Gain	1.3dBi	Frequency Range	1.565GHz ~ 1.585GHz
Frequency Group	UHF (1 GHz ~ 2 GHz)	Frequency (Center/Band)	1.575GHz
Features	-	Detailed Description	1.575GHz GPS Helical RF Antenna 1.565GHz ~ 1.585GHz 1.3dBi Solder Surface Mount
Applications	GPS	Antenna Type	Helical
