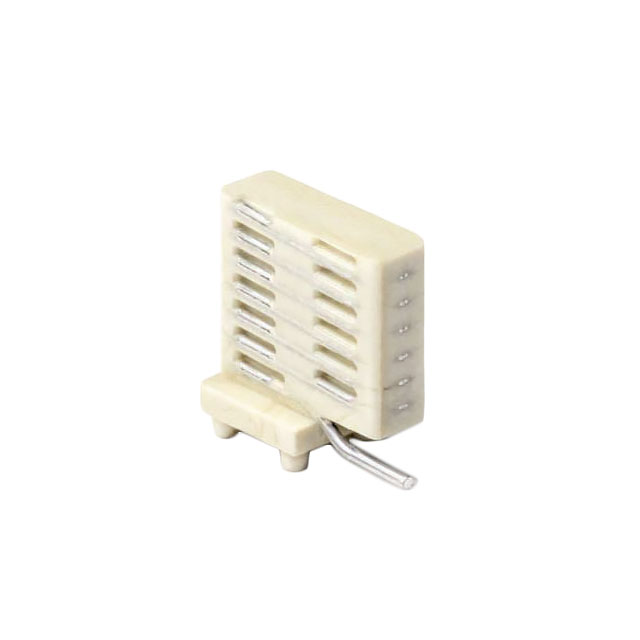

W3118A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy W3118A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy W3118A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | W3118A |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | RF ANT 850MHZ HELICAL SOLDER SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 750 pcs | 1500 pcs | 2250 pcs | 5250 pcs | |
|---|---|---|---|---|---|
| $0.31 | $0.284 | $0.265 | $0.255 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | W3118A | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | RF ANT 850MHZ HELICAL SOLDER SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75065 pcs | Data sheet | Antennas SourceBook® Ver 13W3118A Datasheet |
| Category | RF/IF and RFID | VSWR | - |
| Termination | Solder | Series | - |
| Return Loss | -9dB | Packaging | Tape & Reel (TR) |
| Other Names | 553-2746-2 W3118A-ND |
Number of Bands | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.315" (8.00mm) |
| Gain | 0dBi | Frequency Range | 869MHz ~ 894MHz |
| Frequency Group | UHF (300 MHz ~ 1 GHz) | Frequency (Center/Band) | 850MHz |
| Features | - | Detailed Description | 850MHz GSM Helical RF Antenna 869MHz ~ 894MHz 0dBi Solder Surface Mount |
| Applications | GSM | Antenna Type | Helical |
