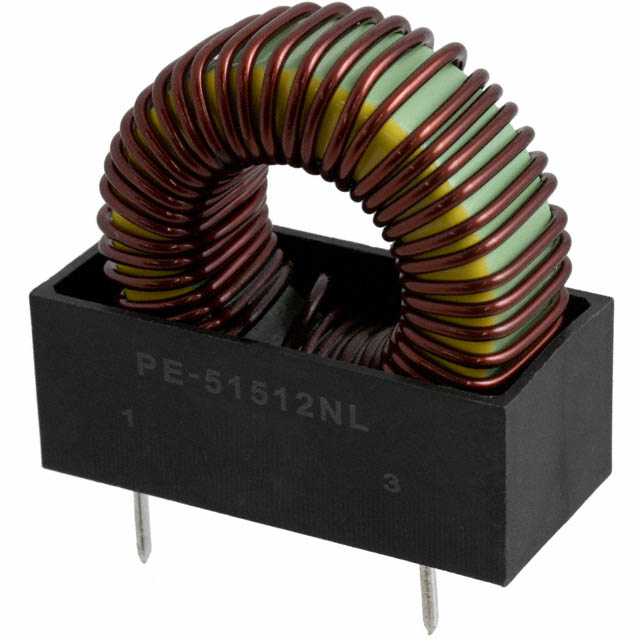

PE-51512NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE-51512NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PE-51512NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE-51512NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | FIXED IND 90UH 10A 28 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $3.815 | $3.391 | $2.628 | $2.459 | $2.255 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | PE-51512NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | FIXED IND 90UH 10A 28 MOHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17455 pcs | Data sheet | PE-515xx High Current Inductors |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | - | Supplier Device Package | - |
| Size / Dimension | 1.950" L x 0.910" W (49.53mm x 23.11mm) | Shielding | Unshielded |
| Series | - | Ratings | - |
| Q @ Freq | - | Packaging | Tube |
| Package / Case | Radial | Other Names | 553-1802-5 PE-51512NL-ND PE51512NL |
| Operating Temperature | -40°C ~ 130°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 17 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 50kHz | Inductance | 90µH |
| Height - Seated (Max) | 2.000" (50.80mm) | Frequency - Self Resonant | - |
| Features | - | Detailed Description | 90µH Unshielded Toroidal Inductor 10A 28 mOhm Max Radial |
| DC Resistance (DCR) | 28 mOhm Max | Current Rating | 10A |
| Current - Saturation | - |
