PE-5156XNL

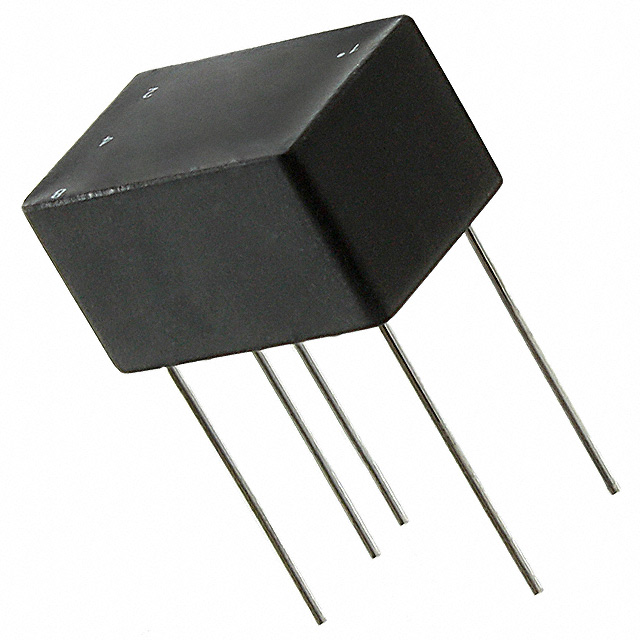

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE-5156XNL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PE-5156XNL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE-5156XNL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | TRANSFORMER 1:1 700VRMS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 45 pcs | 90 pcs | |
|---|---|---|---|---|---|
| $3.326 | $2.586 | $2.516 | $2.167 | ||
| 135 pcs | 270 pcs | 540 pcs | 1035 pcs | ||
| $2.069 | $2.027 | $1.992 | $1.957 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PE-5156XNL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | TRANSFORMER 1:1 700VRMS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18403 pcs | Data sheet | General Purpose Transformers |
| Category | Transformers | Weight | 0.14 oz (3.99g) |
| Turns Ratio - Primary:Secondary | 1:1 | Transformer Type | - |
| Size / Dimension | 0.650" L x 0.443" W (16.51mm x 11.25mm) | Series | - |
| Packaging | Tube | Other Names | 553-1878-5 PE-5156XNL-ND PE5156XNL |
| Operating Temperature | 0°C ~ 70°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 1.2mH | Height - Seated (Max) | 0.400" (10.16mm) |
| Energy Time (E.T.) | 77V µS |
