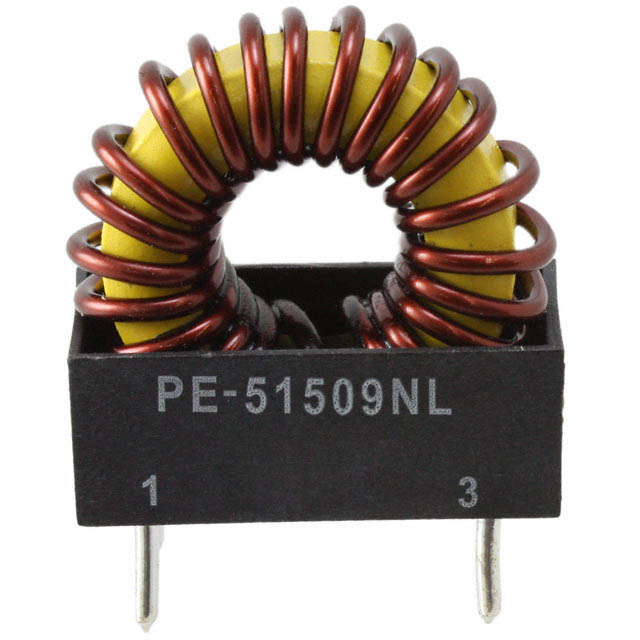

PE-51509NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE-51509NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PE-51509NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE-51509NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | FIXED IND 14UH 10A 9 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 30 pcs | 120 pcs | ||
|---|---|---|---|---|---|
| $1.765 | $1.471 | $1.059 | |||
| 510 pcs | 1020 pcs | 2520 pcs | |||
| $0.941 | $0.883 | $0.853 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PE-51509NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | FIXED IND 14UH 10A 9 MOHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 41296 pcs | Data sheet | PE-515xx High Current Inductors |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | - | Supplier Device Package | - |
| Size / Dimension | 1.200" L x 0.600" W (30.48mm x 15.24mm) | Shielding | Unshielded |
| Series | - | Ratings | - |
| Q @ Freq | - | Packaging | Tray |
| Package / Case | Radial | Other Names | 553-1724 PE-51509NL-ND PE51509NL |
| Operating Temperature | -40°C ~ 130°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 50kHz | Inductance | 14µH |
| Height - Seated (Max) | 1.200" (30.48mm) | Frequency - Self Resonant | - |
| Features | - | Detailed Description | 14µH Unshielded Toroidal Inductor 10A 9 mOhm Max Radial |
| DC Resistance (DCR) | 9 mOhm Max | Current Rating | 10A |
| Current - Saturation | - |
