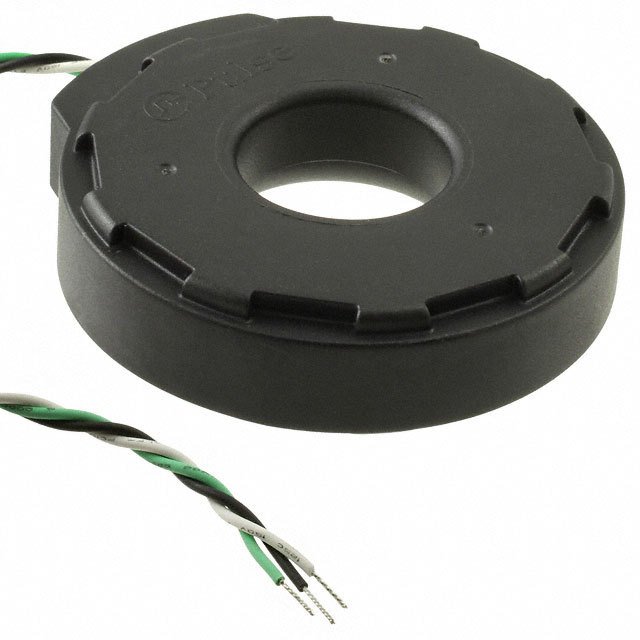

PA3209NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA3209NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA3209NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA3209NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CURR SENSE XFMR ROGOWSKI 1000A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 32 pcs | |
|---|---|---|---|---|---|
| $2.846 | $2.496 | $2.247 | $1.997 | ||
| 64 pcs | 128 pcs | 512 pcs | 1024 pcs | ||
| $1.847 | $1.598 | $1.498 | $1.398 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA3209NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CURR SENSE XFMR ROGOWSKI 1000A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26427 pcs | Data sheet | PA3209NL Series |
| Category | Transformers | Type | Non-Invasive (Solid Core) |
| Turns Ratio - Primary:Secondary | Rogowski Coil | Termination Style | Wire Leads |
| Size / Dimension | 2.240" L x 2.098" W (56.90mm x 53.30mm) | Series | Sidewinder®, PA32XXNL |
| Ratings | - | Packaging | Tray |
| Other Names | 553-2177 | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 3mH |
| Height - Seated (Max) | 0.580" (14.73mm) | Frequency Range | 50/60Hz |
| Energy Time (E.T.) | - | Detailed Description | 1000A Rogowski Coil Current Sense Transformer 50/60Hz 42 Ohm Max 3mH Chassis Mount |
| DC Resistance (DCR) | 42 Ohm Max | Current Ratio | - |
| Current Rating | 1000A |
