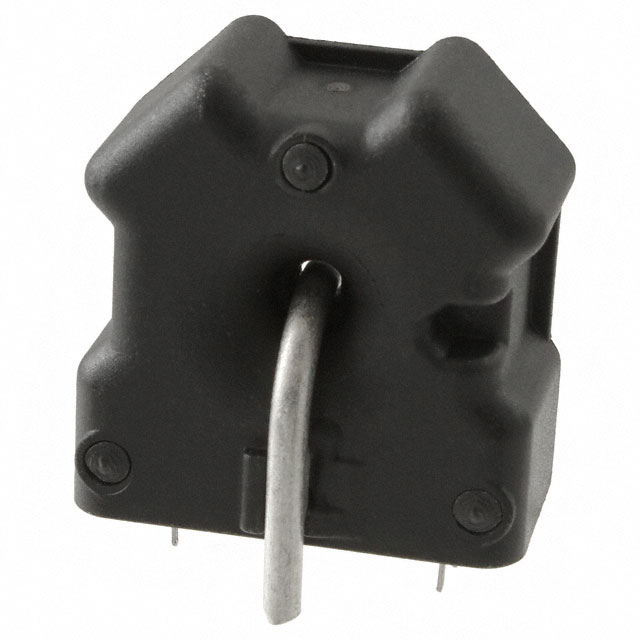

PA3206NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA3206NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA3206NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA3206NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CURR SENSE XFMR ROGOWSKI 40A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 20 pcs | 40 pcs | |
|---|---|---|---|---|---|
| $2.602 | $2.296 | $2.028 | $1.645 | ||
| 60 pcs | 100 pcs | 500 pcs | 1000 pcs | ||
| $1.454 | $1.416 | $1.186 | $1.11 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA3206NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CURR SENSE XFMR ROGOWSKI 40A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34731 pcs | Data sheet | PA320(2,6,8)NL Series |
| Category | Transformers | Type | Non-Invasive (Solid Core) |
| Turns Ratio - Primary:Secondary | Rogowski Coil | Termination Style | Wire Leads |
| Size / Dimension | 1.181" L x 0.563" W (30.00mm x 14.30mm) | Series | Sidewinder®, PA32XXNL |
| Ratings | - | Packaging | Tray |
| Other Names | 553-2175 | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 1.14mH |
| Height - Seated (Max) | 1.220" (31.00mm) | Frequency Range | 50/60Hz |
| Energy Time (E.T.) | - | Detailed Description | 40A Rogowski Coil Current Sense Transformer 50/60Hz 54 Ohm Max 1.14mH Chassis Mount |
| DC Resistance (DCR) | 54 Ohm Max | Current Ratio | - |
| Current Rating | 40A |
