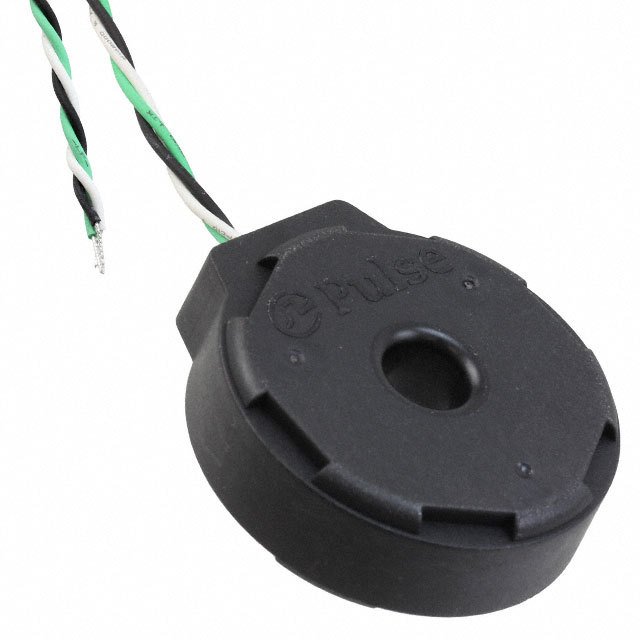

PA3202NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA3202NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA3202NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA3202NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CURR SENSE XFMR ROGOWSKI 200A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 38 pcs | |
|---|---|---|---|---|---|
| $2.61 | $2.304 | $2.035 | $1.651 | ||
| 76 pcs | 114 pcs | 532 pcs | 1026 pcs | ||
| $1.459 | $1.421 | $1.19 | $1.113 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA3202NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CURR SENSE XFMR ROGOWSKI 200A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32288 pcs | Data sheet | PA320(2,6,8)NL Series |
| Category | Transformers | Type | Non-Invasive (Solid Core) |
| Turns Ratio - Primary:Secondary | Rogowski Coil | Termination Style | Wire Leads |
| Size / Dimension | 1.669" L x 1.587" W (42.40mm x 40.30mm) | Series | Sidewinder®, PA32XXNL |
| Ratings | - | Packaging | Tray |
| Other Names | 553-2174 | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 1.75mH |
| Height - Seated (Max) | 0.580" (14.73mm) | Frequency Range | 50/60Hz |
| Energy Time (E.T.) | - | Detailed Description | 200A Rogowski Coil Current Sense Transformer 50/60Hz 54 Ohm Max 1.75mH Chassis Mount |
| DC Resistance (DCR) | 54 Ohm Max | Current Ratio | - |
| Current Rating | 200A |
