PA3136.211HL

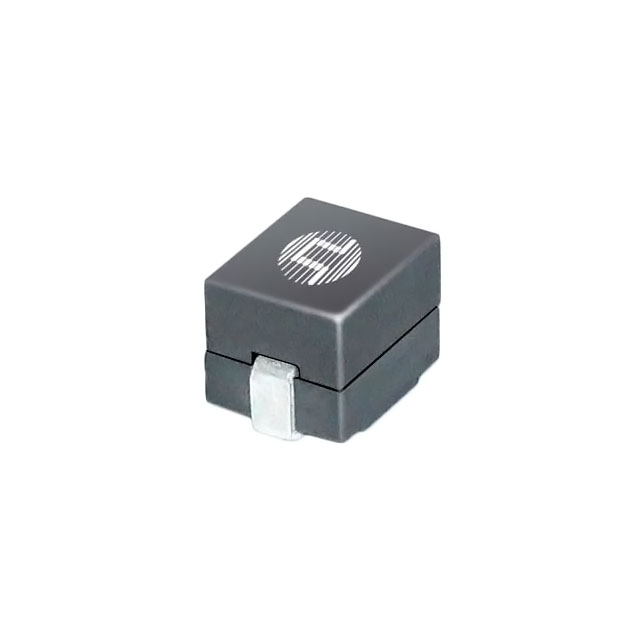

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA3136.211HL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA3136.211HL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA3136.211HL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | FIXED INDUCT 210NH 50A 0.23 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2970 pcs | ||||
|---|---|---|---|---|---|
| $0.185 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA3136.211HL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | FIXED INDUCT 210NH 50A 0.23 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 103647 pcs | Data sheet | PA3136.yyyHL Series |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±15% | Supplier Device Package | - |
| Size / Dimension | 0.543" L x 0.315" W (13.80mm x 8.00mm) | Shielding | Unshielded |
| Series | PA3136.XXXHL | Ratings | - |
| Q @ Freq | - | Packaging | Tray |
| Package / Case | Nonstandard | Other Names | 553-2955 |
| Operating Temperature | -40°C ~ 130°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 210nH |
| Height - Seated (Max) | 0.157" (4.00mm) | Frequency - Self Resonant | - |
| Features | - | Detailed Description | 210nH Unshielded Inductor 50A 0.23 mOhm Nonstandard |
| DC Resistance (DCR) | 0.23 mOhm | Current Rating | 50A |
| Current - Saturation | 25A |
