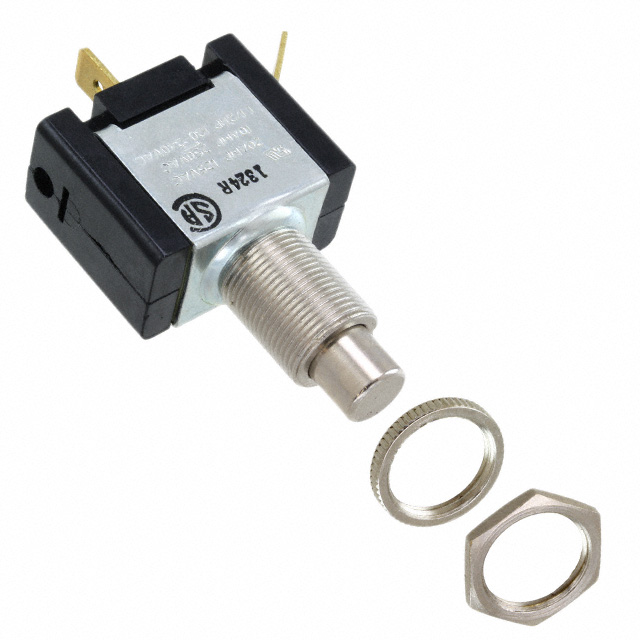

PA301
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA301 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA301 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA301 |
|---|---|
| Manufacturer | Carling Technologies |
| Description | SWITCH PUSH SPST 20A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.461 | $3.207 | $3.123 | $3.038 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.869 | $2.785 | $2.616 | $2.363 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA301 | Manufacturer | Carling Technologies |
|---|---|---|---|
| Description | SWITCH PUSH SPST 20A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14109 pcs | Data sheet | P Series |
| Category | Switches | Voltage Rating - AC | 125V |
| Type | Standard | Termination Style | Quick Connect - 0.250" (6.3mm) |
| Switch Function | On-Off | Series | P |
| Panel Cutout Dimensions | Circular - 12.70mm Dia | Packaging | Bulk |
| Other Names | 300-15980000 432-1205 |
Operating Temperature | 0°C ~ 85°C |
| Mounting Type | Panel Mount, Rear | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 100,000 Cycles | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Features | - | Electrical Life | 50,000 Cycles |
| Detailed Description | Pushbutton Switch SPST Standard Panel Mount, Rear | Current Rating | 20A (AC) |
| Color - Actuator/Cap | Silver | Circuit | SPST |
| Actuator Type | Round, Plunger, Metal |
