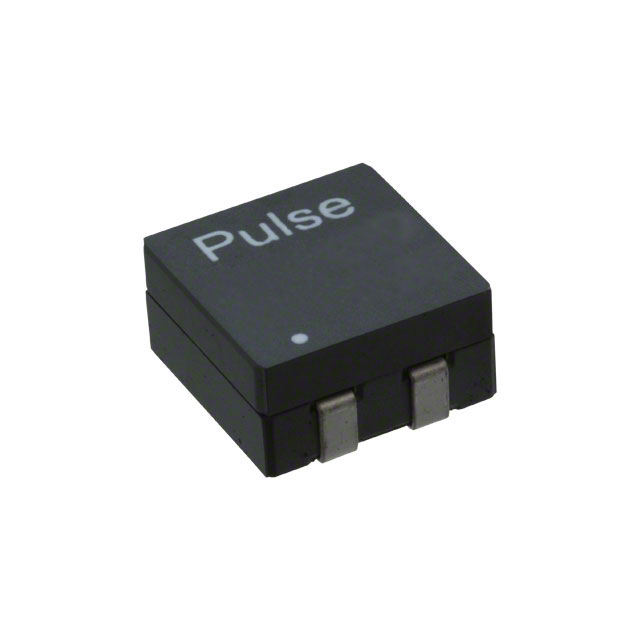

PA0766.561NLT
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA0766.561NLT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA0766.561NLT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA0766.561NLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | INDUCT ARRAY 2 COIL 284NH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1250 pcs | ||||
|---|---|---|---|---|---|
| $0.486 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA0766.561NLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 284NH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79347 pcs | Data sheet | PA0766NL Series |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |
| Size / Dimension | 0.551" L x 0.531" W (14.00mm x 13.50mm) | Shielding | Unshielded |
| Series | PA0766NL | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Other Names | 553-1981-2 PA0766.561NL PA0766.561NLT-ND PA0766561NLT |
Operating Temperature | -40°C ~ 130°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 1.14µH |
| Inductance - Connected In Parallel | 284nH | Height | 0.276" (7.00mm) |
| Detailed Description | Unshielded 2 Coil Inductor Array 1.14µH Inductance - Connected in Series 284nH Inductance - Connected in Parallel 0.38 mOhm Max DC Resistance (DCR) - Parallel 37A Nonstandard | DC Resistance (DCR) - Series | 1.5 mOhm Max |
| DC Resistance (DCR) - Parallel | 0.38 mOhm Max | Current Saturation - Series | 18.5A |
| Current Saturation - Parallel | 37A | Current Rating - Series | 18.5A |
| Current Rating - Parallel | 37A |
