PA0690

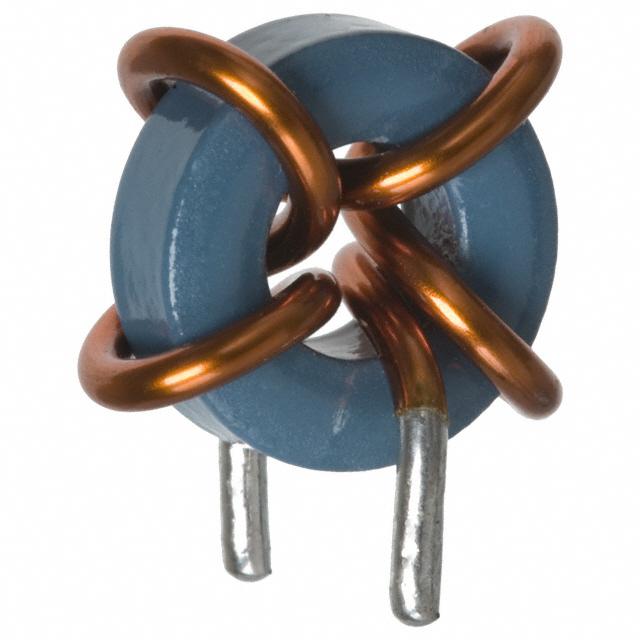

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA0690 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA0690 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA0690 |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | FIXED IND 500NH 22.5A 1.5 MOHM |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA0690 | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | FIXED IND 500NH 22.5A 1.5 MOHM | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4910 pcs | Data sheet | THT Pwr Inductors - Bare Coil Series |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.626" Dia x 0.346" W (15.90mm x 8.80mm) | Shielding | Unshielded |
| Series | Bare Coil | Ratings | - |
| Q @ Freq | - | Packaging | Tray |
| Package / Case | Radial | Other Names | 553-1106 |
| Operating Temperature | -40°C ~ 130°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Inductance | 880nH |
| Height - Seated (Max) | - | Frequency - Self Resonant | - |
| Features | - | Detailed Description | 880nH Unshielded Toroidal Inductor 22.5A 1.5 mOhm Max Radial |
| DC Resistance (DCR) | 1.5 mOhm Max | Current Rating | 22.5A |
| Current - Saturation | - |
