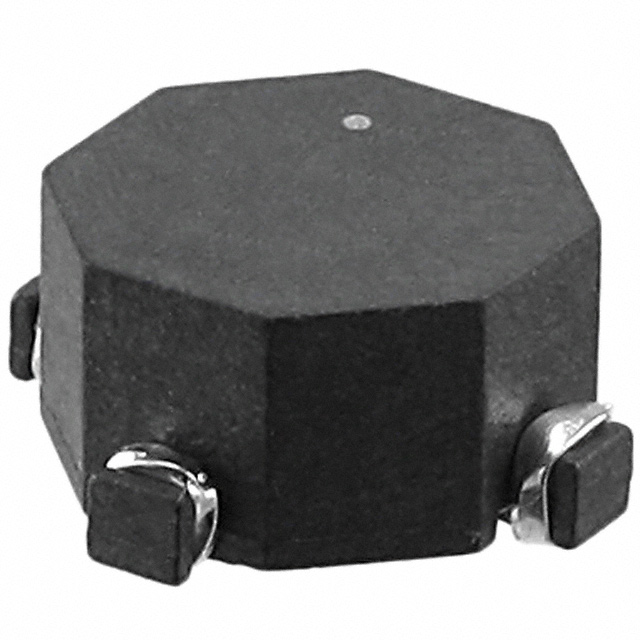

PA0367ANLT
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA0367ANLT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA0367ANLT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA0367ANLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | TRANSFORMER 18UH 1:12 SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.628 | $1.318 | $1.066 | $0.999 | $0.954 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | PA0367ANLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | TRANSFORMER 18UH 1:12 SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40977 pcs | Data sheet | PA0367A |
| Category | Transformers | Voltage - Primary | - |
| Voltage - Isolation | 500Vrms | Voltage - Auxiliary | - |
| Type | For DC/DC Converters | Size / Dimension | 0.360" L x 0.360" W (9.14mm x 9.14mm) |
| Series | - | Packaging | Cut Tape (CT) |
| Other Names | 553-1978-1 | Operating Temperature | -40°C ~ 130°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Intended Chipset | LT3420 | Inductance @ Frequency | - |
| Height - Seated (Max) | 0.215" (5.45mm) | Frequency | - |
| Footprint | 0.460" L x 0.460" W (11.68mm x 11.68mm) | Chipset Manufacturer | Linear Technology |
| Applications | Flyback Converters |
