PA0368.125NLT

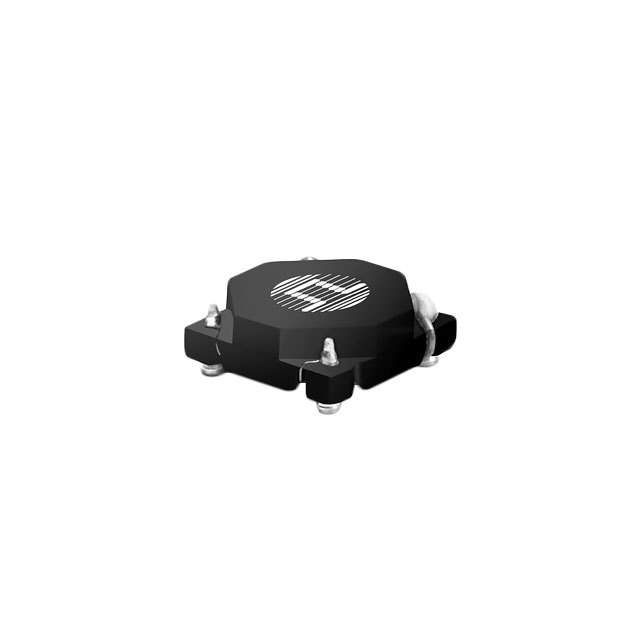

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA0368.125NLT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA0368.125NLT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA0368.125NLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CURR SENSE XFMR 1:125 SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2200 pcs | ||||
|---|---|---|---|---|---|
| $0.40 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA0368.125NLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CURR SENSE XFMR 1:125 SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86213 pcs | Data sheet | PA0368NL Series |
| Category | Transformers | Weight | - |
| Type | Invasive | Turns Ratio - Primary:Secondary | 1:125 |
| Termination Style | - | Size / Dimension | 0.325" L x 0.325" W (8.25mm x 8.25mm) |
| Series | PA0368NL | Ratings | - |
| Packaging | Tape & Reel (TR) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 10.4mH |
| Height - Seated (Max) | 0.134" (3.40mm) | Frequency Range | 50kHz ~ 1MHz |
| Energy Time (E.T.) | - | Detailed Description | 1:125 Current Sense Transformer 50kHz ~ 1MHz 4 mOhm Primary, 1.9 Ohm Secondary 10.4mH Surface Mount |
| DC Resistance (DCR) | 4 mOhm Primary, 1.9 Ohm Secondary | Current Ratio | - |
