PA0297NLT

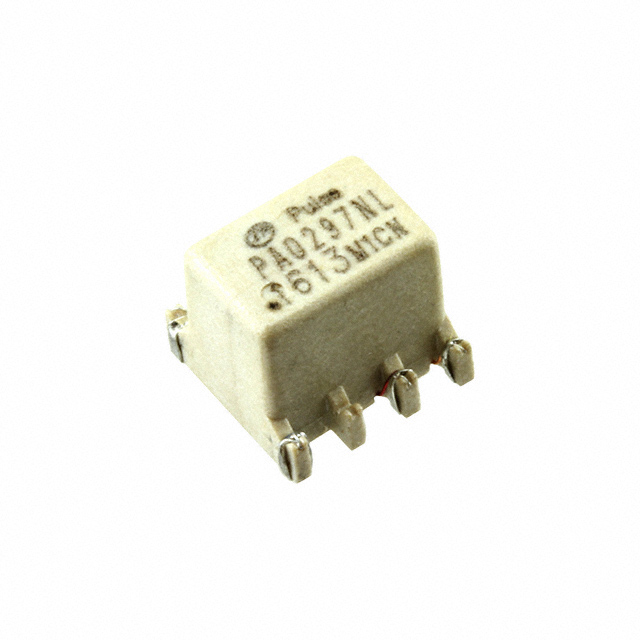

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA0297NLT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA0297NLT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA0297NLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | PULSE XFMR 2:1:1 1200UH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 400 pcs | 800 pcs | 1200 pcs | ||
|---|---|---|---|---|---|
| $0.545 | $0.541 | $0.478 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA0297NLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | PULSE XFMR 2:1:1 1200UH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75698 pcs | Data sheet | SMT Gate Drive Transformers |
| Category | Transformers | Turns Ratio - Primary:Secondary | 2:1:1 |
| Transformer Type | - | Size / Dimension | 0.354" L x 0.339" W (9.00mm x 8.60mm) |
| Series | - | Packaging | Tape & Reel (TR) |
| Other Names | 553-3808-2 PA0297NLT-ND |
Operating Temperature | -40°C ~ 130°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 1200µH | Height - Seated (Max) | 0.299" (7.60mm) |
| Energy Time (E.T.) | 27.2V µS |
