PA0264NLT

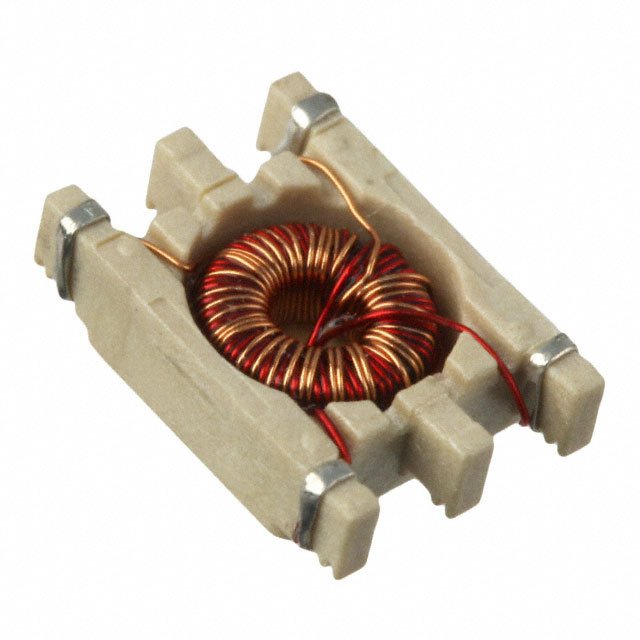

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA0264NLT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA0264NLT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA0264NLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | PULSE XFMR 1:1:1 1.14MH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $1.066 | $0.864 | $0.699 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $0.655 | $0.625 | $0.607 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA0264NLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | PULSE XFMR 1:1:1 1.14MH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61156 pcs | Data sheet | SMT Gate Drive Transformers |
| Category | Transformers | Turns Ratio - Primary:Secondary | 1:1:1 |
| Transformer Type | - | Size / Dimension | 0.340" L x 0.265" W (8.64mm x 6.73mm) |
| Series | - | Packaging | Cut Tape (CT) |
| Other Names | 553-1525-1 | Operating Temperature | -40°C ~ 130°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 1.14mH | Height - Seated (Max) | 0.140" (3.56mm) |
| Energy Time (E.T.) | 17.2V µS |
