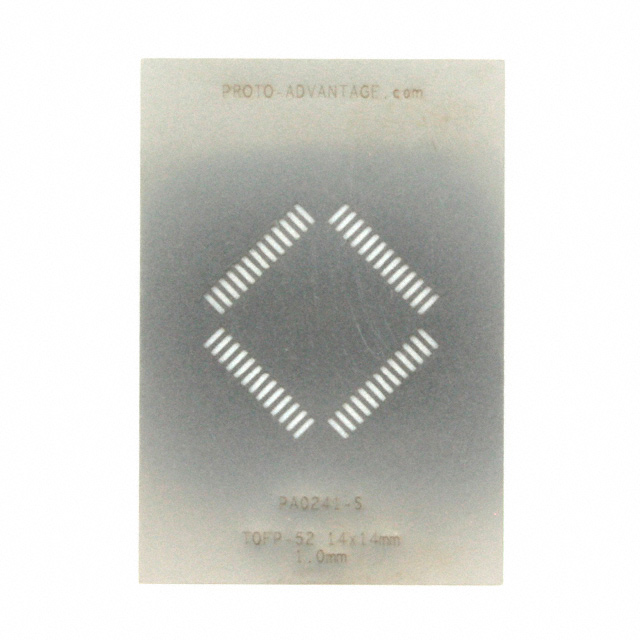

PA0241-S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA0241-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA0241-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA0241-S |
|---|---|
| Manufacturer | Chip Quik, Inc. |
| Description | TQFP-52 STENCIL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $4.093 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA0241-S | Manufacturer | Chip Quik, Inc. |
|---|---|---|---|
| Description | TQFP-52 STENCIL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9062 pcs | Data sheet | Stencil Selection GuildePA0241-S DatasheetCircuit Assembly Instr |
| Category | Soldering, Desoldering, Rework Products | Type | TQFP |
| Thickness | 0.0040" (0.102mm) | Thermal Center Pad | - |
| Series | Proto-Advantage | Pitch | 0.039" (1.00mm) |
| Outer Dimension | 1.350" L x 1.950" W (34.29mm x 49.53mm) | Number of Positions | 52 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material | Stainless Steel |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inner Dimension | 0.551" L x 0.551" W (14.00mm x 14.00mm) |
