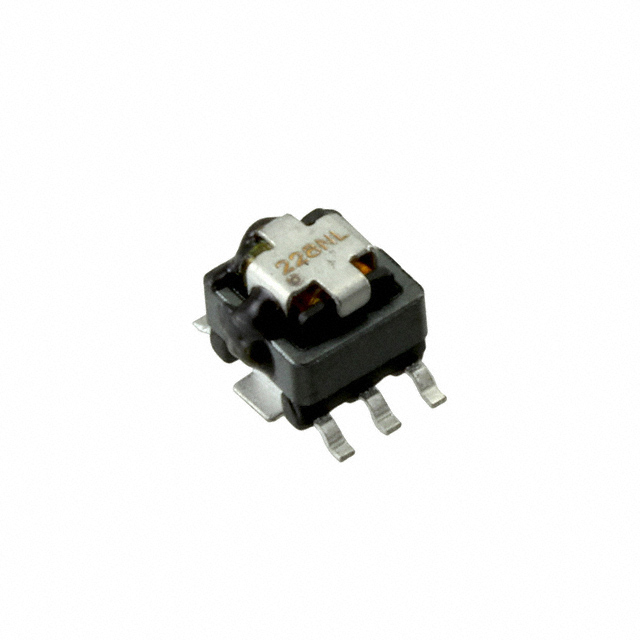

P8228NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy P8228NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy P8228NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | P8228NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CURR SENSE XFMR 1:100 10A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 120 pcs |
|---|---|---|---|---|---|
| $0.877 | $0.859 | $0.575 | $0.512 | $0.469 | |
| 360 pcs | 600 pcs | 1080 pcs | 5040 pcs | ||
| $0.421 | $0.412 | $0.298 | $0.263 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | P8228NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CURR SENSE XFMR 1:100 10A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75979 pcs | Data sheet | P822x Series |
| Category | Transformers | Type | Invasive |
| Turns Ratio - Primary:Secondary | 1:100 | Termination Style | Gull Wing |
| Size / Dimension | 0.284" L x 0.330" W (7.21mm x 8.38mm) | Series | P822X |
| Ratings | - | Packaging | Tray |
| Other Names | 553-2884 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 2mH |
| Height - Seated (Max) | 0.190" (4.83mm) | Frequency Range | 50kHz ~ 1MHz |
| Energy Time (E.T.) | - | Detailed Description | 10A 1:100 Current Sense Transformer 50kHz ~ 1MHz 6 mOhm Primary, 5.5 Ohm Secondary 2mH Surface Mount |
| DC Resistance (DCR) | 6 mOhm Primary, 5.5 Ohm Secondary | Current Ratio | - |
| Current Rating | 10A |
