Home > Products > RF/IF and RFID > RF Antennas > P822601

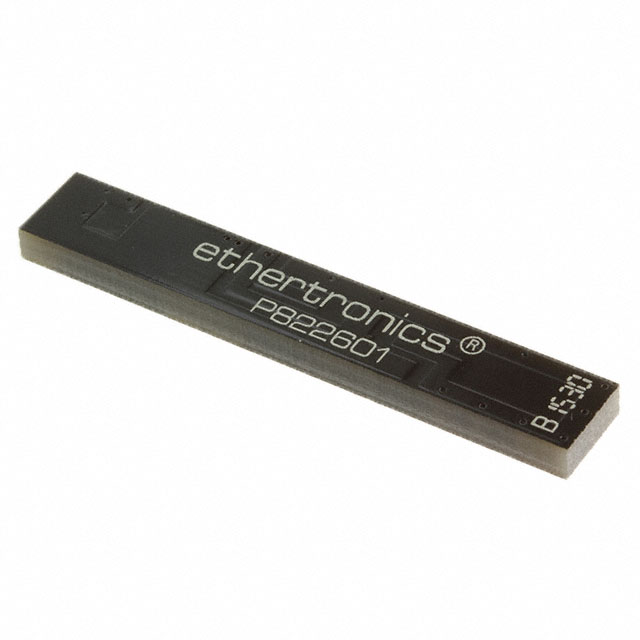

P822601

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy P822601 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	P822601
Manufacturer	Ethertronics
Description	RF ANT 700MHZ/750MHZ FLAT BAR
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 49464 pcs
Reference Price (In US Dollars)	1500 pcs	3000 pcs
Reference Price (In US Dollars)	$2.758	$0.636

Product parameter
Data sheet

Product parameter

Part Number	P822601	Manufacturer	Ethertronics
Description	RF ANT 700MHZ/750MHZ FLAT BAR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	49464 pcs	Data sheet	P822601,2 Datasheet
Category	RF/IF and RFID	VSWR	2.5
Termination	Solder	Series	Prestta™
Return Loss	-	Power - Max	2W
Packaging	Tape & Reel (TR)	Other Names	939-1057-2 P822601-ND Q9440574
Number of Bands	8	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Height (Max)	0.126" (3.20mm)	Gain	1.1dBi, 1.7dBi, 1.8dBi, 2.2dBi, 3.9dBi, 3.8dBi, 3.4dBi, 3.6dBi
Frequency Range	700MHz ~ 787MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz	Frequency Group	Wide Band
Frequency (Center/Band)	700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz	Features	-
Detailed Description	700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA Flat Bar RF Antenna 700MHz ~ 787MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz 1.1dBi, 1.7dBi, 1.8dBi, 2.2dBi, 3.9dBi, 3.8dBi, 3.4dBi, 3.6dBi Solder Surface Mount	Applications	CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA
Antenna Type	Flat Bar
