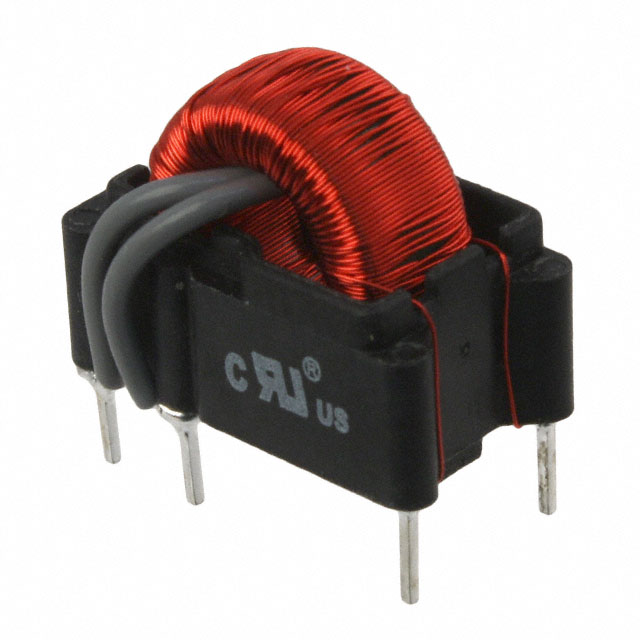

P0581NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy P0581NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy P0581NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | P0581NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CURR SENSE XFMR 200:1:1 34A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 80 pcs | 160 pcs |
|---|---|---|---|---|---|
| $1.257 | $1.02 | $0.825 | $0.772 | $0.738 | |
| 320 pcs | 560 pcs | 1040 pcs | 5040 pcs | ||
| $0.716 | $0.694 | $0.673 | $0.618 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | P0581NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CURR SENSE XFMR 200:1:1 34A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 51315 pcs | Data sheet | P058x Series THT Current Sense Xfrmrs |
| Category | Transformers | Weight | 0.011 lb (4.99g) |
| Type | Invasive | Turns Ratio - Primary:Secondary | 200:1:1 |
| Termination Style | PC Pin | Size / Dimension | 0.810" L x 0.580" W (20.57mm x 14.73mm) |
| Series | THT | Ratings | - |
| Packaging | Tray | Other Names | 553-1650-5 P0581NL-ND |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 76mH | Height - Seated (Max) | 0.750" (19.05mm) |
| Frequency Range | 50kHz ~ 500kHz | Energy Time (E.T.) | - |
| Detailed Description | 34A 200:1:1 Current Sense Transformer 50kHz ~ 500kHz 2.8 Ohm Primary, 1.7 mOhm Secondary 76mH Through Hole | DC Resistance (DCR) | 2.8 Ohm Primary, 1.7 mOhm Secondary |
| Current Ratio | - | Current Rating | 34A |
